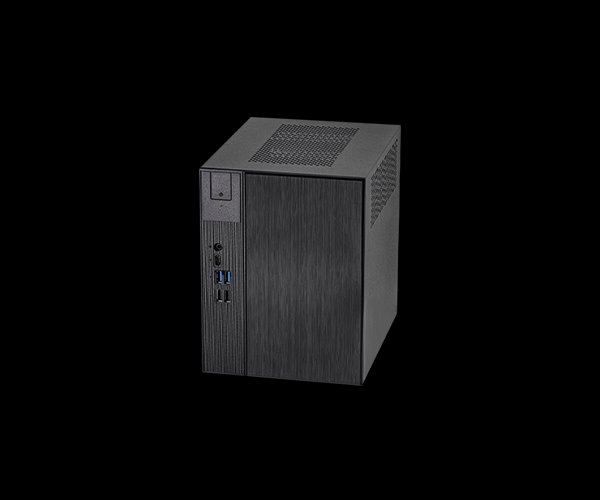

ASRock PC DeskMeet B660 LGA1700(65W), 4x DIMM DDR4, PCIe x16, 2x M.2 + M.2E, 3x SATA,1Gb LAN, HDMI, DP, VGA, 500W

Popis produktu:

• Supports 12th Gen Intel Core™ Processors (LGA1700)
• Supports MAX Height ? 54mm CPU Cooler
• Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
• 1 x PCIe 4.0 x16
• Graphics Output Options:DisplayPort, HDMI & D-Sub
• 3 x SATA3
• 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
  1 x Hyper M.2 (PCIe Gen4 x4)
• 1 x USB 3.2 Gen1 Type-C Port
• 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
• 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
• 1 x M.2 Key-E for Wi-Fi
• 500W power supply (80+ Bronze)
• 8 Liter compact size

• CPU
  - Supports 12th Gen Intel^® Core™ Processors (LGA1700)
• Cooler
  - Supports Intel^® CPU Cooler (Max. Height ? 54mm)
• Memory
  - Supports Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM slots (Max. 128GB)
  - Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC, un-buffered memory*


  *Supports DDR4 3200 natively.
• Chipset
  - Intel^® B660
• Graphics
  - Supports a discrete Dual slot Graphics card up to 20CM
• Audio
  - Realtek ALC897 Audio Codec
• Storage
  - 3 x SATA3 6.0Gb/s ports
  - 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*


  *Supports Intel^® Optane™ Technology
  Supports NVMe SSD as boot disks
  Supports Intel^® Volume Management Device (VMD)
• LAN
  - Giga PHY Intel^® I219V
• Expansion Slots
  - 1 x PCIe 4.0 x 16
  - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel^® CNVi (Integrated Wi-Fi/BT)
• Front I/O
  - 1 x Headphone/Headset Jack
  - 1 x USB 3.2 Gen1 Type-C
  - 2 x USB 3.2 Gen1 Type-A
  - 2 x USB 2.0 Type-A
• Rear I/O
  - 1 x DisplayPort 1.4
  - 1 x HDMI
  - 1 x D-Sub
  - 2 x USB 2.0
  - 2 x USB 3.2 Gen1 Type-A
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Connectors
  - 1 x Chassis Intrusion Header
  - 1 x CPU Fan Connector (4-pin)
  - 1 x Chassis/Water Pump Fan Connectors (4-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Header
  - 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
• Volume (liters)
  - 8L
• Power Unit
  - 500W power supply (80+ Bronze, peak 550W)
• Accessory
  - Quick Installation Guide
  - 2 x SATA Data Cables
  - 1 x Screws Package
• Dimension
  - 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
  - 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit

Stránky o produktu:

https://www.asrock.com/nettop/Intel/DeskMeet%20B660%20Series/index.asp#CPU
