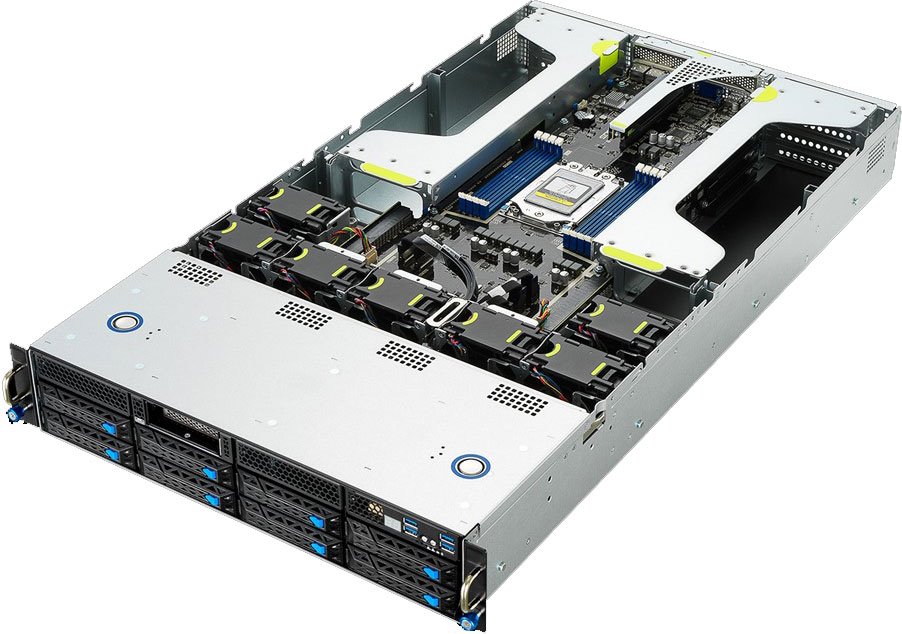

ASUS ESC4000 2U 4GPU server 2x4189, 16x DDR4 ECC R, 8x 3.5 SATA), 2200W (plat), 2x LAN, IPMI








  • ASUS ESC4000 2U 4GPU server 2x4189, 16x DDR4 ECC R, 8x 3.5 SATA), 2200W (plat), 2x LAN, IPMI
  • ASUS ESC4000 2U 4GPU server 2x4189, 16x DDR4 ECC R, 8x 3.5 SATA), 2200W (plat), 2x LAN, IPMI










Kód:
ESC4000E102200W
P/N:
90SF01B3-M00500
Výrobce:

ASUS

Záruka:
24 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:

ESC4000-E10

2U GPU server powered by dual-socket 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 4 M.2, eight NVMe (by SKU), total eleven PCIe 4.0 slots, one OCP 3.0 (by SKU) and ASUS ASMB10-iKVM.





  • Processor / System Bus

    2 x Socket P+ (LGA 4189)
    3rd Gen Intel® Xeon® Scalable Processors Family(205W)

  • Generation

    E10

  • Core Logic

    Intel® C621A Chipset

  • Memory

    Total Slots : 16 (8-channel per CPU, 8 DIMM per CPU)
    Capacity : Maximum up to 2048GB RDIMM
    Memory Type :
    DDR4 3200 RDIMM
    DDR4 3200 LRDIMM
    DDR4 3200 LR-DIMM 3DS
    Memory Size :
    128GB, 64GB, 32GB, 16GB
    * Refer to support page for more information

  • Expansion Slots

    Rear:
    - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
    8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards*

    - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)

    Front:
    - SKU-1 (default)
    1 x PCIe x8 slot (Gen4 x8 link, LP,HL)
    4 x M.2 sockets (Gen4 x4 link, up to 22110 module)

    - SKU-2 (by request)
    1 x PCIe x8 slot (Gen4 x8 link, LP,HL)
    1 x OCP3.0 slot (Gen4 x16 link)

    - SKU-3 (by request)
    N/A

  • Storage

    Storage Controller :
    Intel C621A
    Optional kits Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • Drive Bays

    8 x 3.5" or 2.5" Hot-swap Storage Bays
    (SKU-1 & SKU-2 Backplane Supports 6 x SATA/SAS + 2 x SATA/SAS/NVMe Devices**)
    (SKU-3 Backplane Supports 8 x SATA/SAS/NVMe Devices)

    1 x M.2 socket (Gen3 x4 link or SATA mode, up to 2280 on-motherboard)

  • Networking

    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

  • Front I/O Ports

    4 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    2 x USB 3.2 Gen1 port
    1 x VGA port
    1 x Management port (RJ45)
    2 x Gigabit LAN ports (RJ45)

  • Switch/LED

    Rear Switch/LED:
    1 x Power Button/LED
    1 x Location LED
    1 x Message LED
    1 x HDD Access LED

    Front Switch/LED:
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    1 x HDD Access LED
    2 x LAN LED
    1 x Q-code/port-80 LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (in-band)
    ASMB10-iKVM for KVM-over-IP (out-of-band/BMC AST2600)

  • Regulatory Compliance

    BSMI, CE, FCC(Class A)

  • Dimensions

    800mm x 440mm x 88mm (2U)
    31.50" x 17.22" x 3.5"

  • Form Factor

    2U

  • Weight

    Net Weight: 34 Kg.
    Gross Weight: 44 Kg.

  • Power Supply

    1+1 Redundant 1600W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz

    1+1 Redundant 2200W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz

  • Environment

    Operation temperature: 10? ~ 35? / Non operation temperature: -40? ~ 70?
    Non operation humidity: 20% ~ 90% ( Non condensing)

  • Note

    *We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail.

    **Users need to remove Slimline cables from the PCIe riser board & OCP3.0 slot board, and
    re-connect the cables to the backplane to support up to 8 x NVMe devices.


  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
  • The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
  • The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.


Stránky o produktu:

https://servers.asus.com/products/Servers/GPU-Servers/ESC4000-E10#Specifications











Parametry





Základní parametry
Provedení serveru:  GPU server
Formát:  2U

Procesor
Procesor:  Intel

Pevný disk
Typ řadiče:  SATA

Paměť
Typ paměti:  DDR4
Počet paměťových slotů:  16
