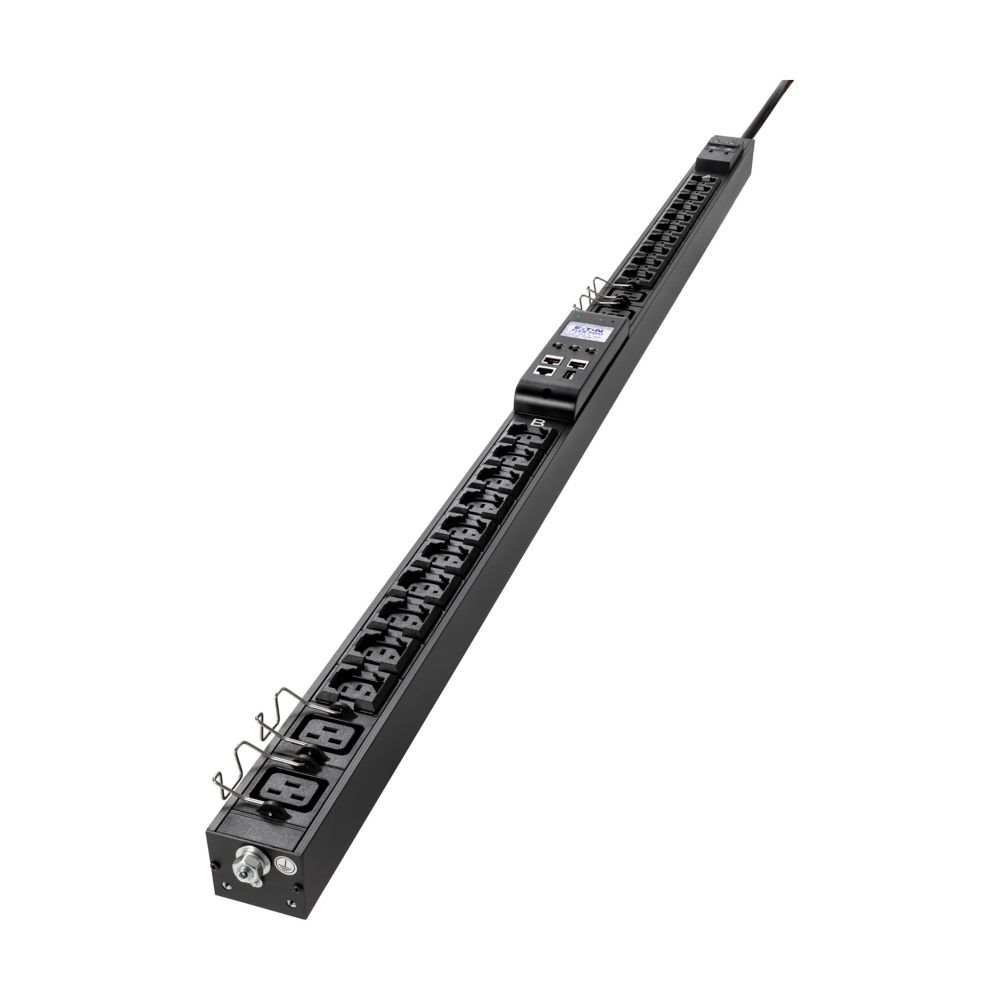

EATON FlexPDU G2: Měřený vstup 0U, In: IEC 60309 32A 1P - Out: 20xC13:4xC19

Popis produktu:

FLXTMI132C2
Kód modelu: PDU FLXG2 MI 0U 309 1P 32A 20xC13,4xC19
Eaton Metered Input FlexPDU Gen2, 0U, 31U, IEC60309 input, 3m cord, 1ph, 7.4kW, 32A, 200-240V, 24 outlets (20)C13, (4)C19

General specifications
Product Name
Eaton Flex PDU G2
Catalog Number
FLXTMI132C2
EAN
3553340697401
Product Length/Depth
44.4 mm
Product Height
1337 mm
Product Width
52 mm
Product Weight
3.5 kg
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Certifications
EN IEC 63000
EN 55032
RCM
Ukr
CE
EAC
Cm
IEC 62368-1
Model Code
PDU FLXG2 MI 0U 309 1P 32A 20xC13,4xC19
Technické údaje produktu
Special features

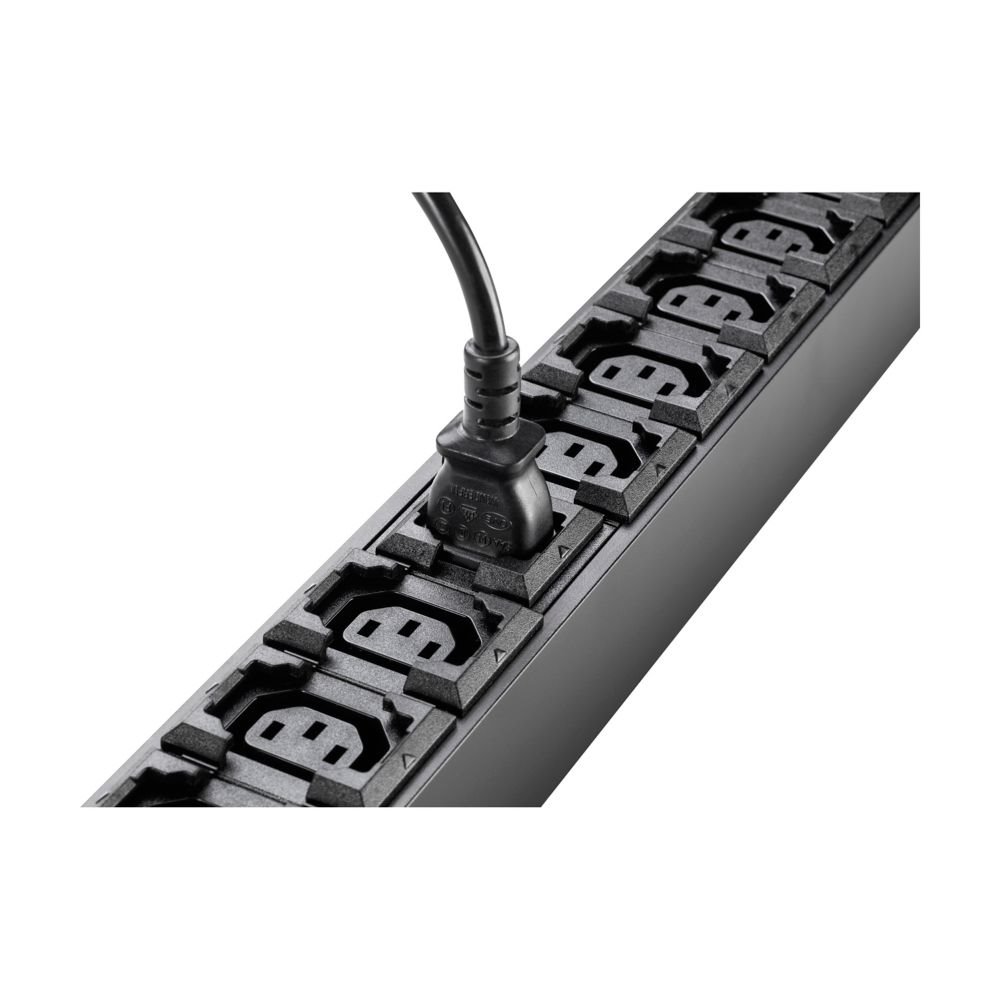

Locking outlets
Pure copper used for main circuit conductors
Hydraulic-magnetic circuit breakers (models ? 32A) provided
High-temperature resilience up to 50°C
Measurement accuracy ±1%
Ethernet port speed 10/100 Mbs
Supported protocols and standards: HTTPS, SSH v2, SNMP, SMTP, DHCP, RADIUS, NTP, TELNET, as well as IPv4 and IPv6
Full-featured network management through Web or SNMP

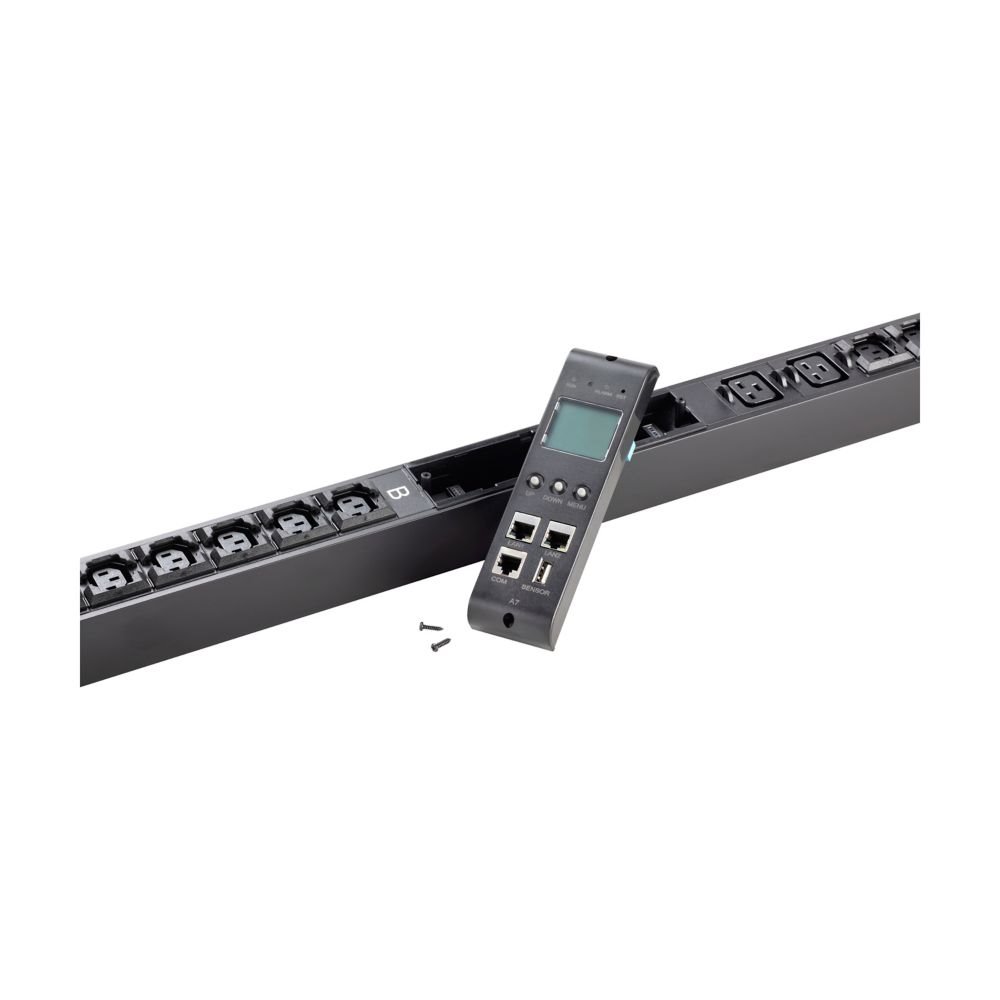

Hot-swappable network Management module
Metered input measurement (current, power, energy consumption, power factor, etc.)
Type
Rack PDU
Form factor
0U (Vertical)
Outlet control
No
Package contents
Rack PDU
Mounting accessories
Quickstart guide
Safety Instructions
Operating Temperature
32° to 122°F (0° to 50°C)
Mounting direction
Vertical
Color
Black
Input connection
IEC-60309 32A BLUE (2P+E)
Cord length
3m
Wattage
7.4 kW max
Amperage Rating
32 A
Electric current - max
32 A
Input voltage
200-240V
Phase
Single-phase
Frequency rating
50/60 Hz
Outlets
24 outlets (20)C13 (4)C19
Number of Outputs 5-15R
0
Number of Outputs 5-20R
0
Number of Outputs 6-15R
0
Number of Outputs 6-20R
0
Number of Outputs L14-30R
0
Number of Outputs L5-20R
0
Number of Outputs L5-30R
0
Number of Outputs L6-20R
0
Number of Outputs L6-30R
0
Number of Outputs C13
20
Number of Outputs C19
4
Number of Outputs C20
0
Number of outputs hardwired
0
Num of Outputs PC (SCHUKO)
0
Number of outputs (other)
0
Number of outlets with earth pin
24
No of Outlet Suisse Stndrd Type13
0
No of Outlet Suisse Stndrd Type15
0
No of Outlet Suisse Stndrd Type23
0
No of Outlet Suisse Stndrd Type25
0
Number of UK BS1363 sockets
0
Circuit breaker
(2) single-pole
SNMP
Yes
Ethernet interface
Yes
Electrical connection
Connecting cord with plug
Evaluation
Other
Mounting Dimension (metrical)
1337
Mounting dimension (standardized)
Other
Switchable
No
Over voltage category
2
Fitted with:

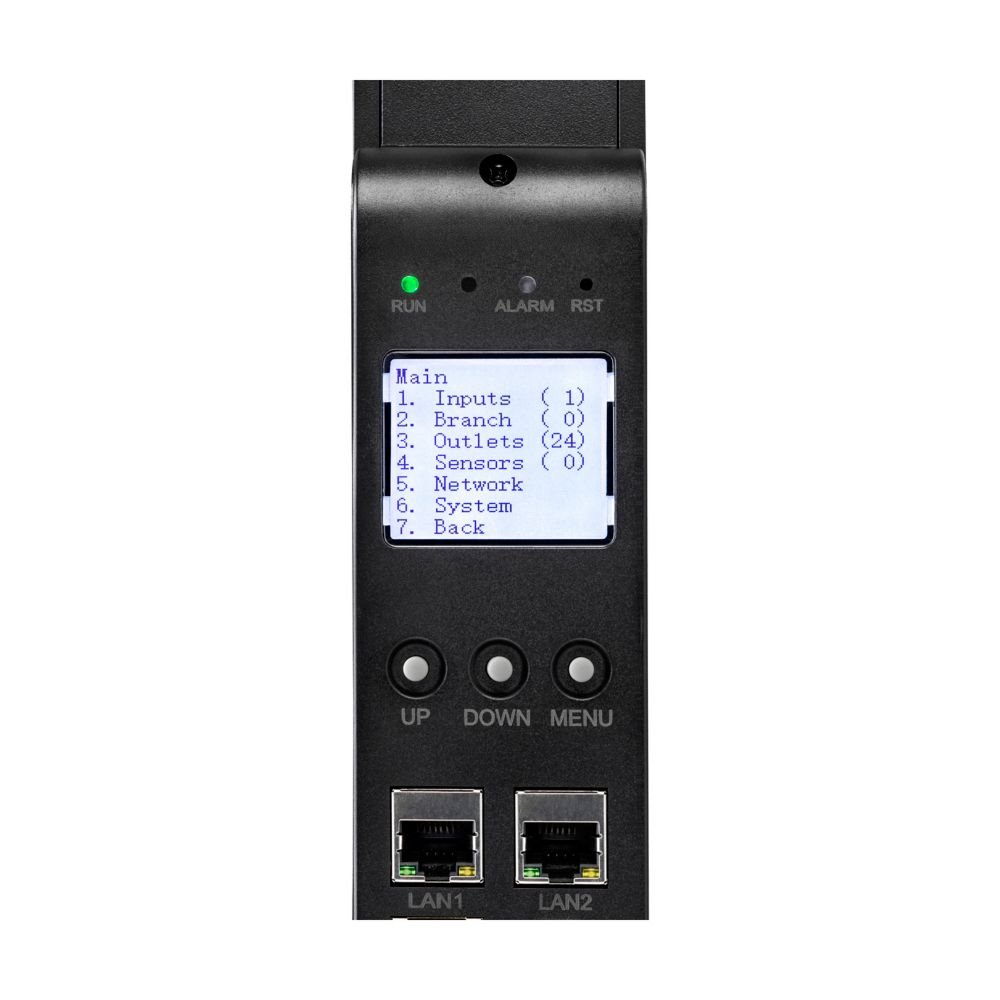

Display
LED indication
Fuse
Mounting material
Communication
Yes
With surge protection module
No
Amperemeter
Yes
Number of USB connections
1
Number of RJ45 sockets
3
