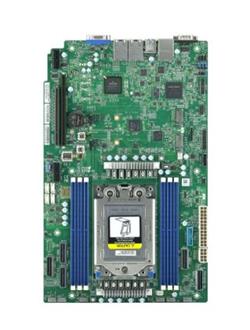

SUPERMICRO MB 1xSP6 (Epyc 8004), 6x DDR5, (3xMCIO Pcie5x8) (2xMCIOx8 Sata), 2xM.2, PCIe 5.0 (1x16 1x32) 2x1Gb,IPMI WIO








  • SUPERMICRO MB 1xSP6 (Epyc 8004), 6x DDR5, (3xMCIO Pcie5x8) (2xMCIOx8 Sata), 2xM.2, PCIe 5.0 (1x16 1x32) 2x1Gb,IPMI WIO










Kód:
SRMBDH13SVWNO
P/N:
MBD-H13SVW-N-O
Výrobce:

Supermicro





ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:

Product SKUs
MBD-H13SVW-N
Physical Stats
Form Factor Proprietary WIO
Dimension 8.15" x 13.05" (20.7cm x 33.15cm)
Processor
CPU AMD EPYC™ 8004 series Processors
Single Socket SP6 supported, CPU TDP supports Up to 225W TDP
Core Up to 64 cores, 128 threads
System Memory
Memory Capacity 6 DIMM slots
Up to 576GB ECC Registered RDIMM, DDR5-4800MHz
Memory Type 4800 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes 8GB, 16GB, 32GB
Memory Voltage 1.1V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
Network Controllers Dual LAN with Broadcom BCM5720 1GBase-T
Single LAN with Realtek RTL8211F PHY
Input / Output
USB 6 USB 3.0 port(s) (4 USB; 2 via header)
Video Output 1 VGA port(s)
TPM 1 TPM Header
Others 3 MCIO (PCIe 5.0 x8) Port(s)
2 MCIO (PCIe 5.0 x8/SATA3) Port(s)
Expansion Slots
PCIe 1 PCIe 5.0 x16 Right Riser Slot,
1 PCIe 5.0 x32 Left Riser Slot
M.2 M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
BIOS Features ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Security
Hardware Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED UID/Remote UID
BMC/IPMI Heartbeat LED
Other Features RoT
FAN 6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range 10°C - 35°C (°F - °F)
Non-Operating Temperature Range -40°C - 70°C (°F - °F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non Operating Relative Humidity Range 5% - 95% (non-condensing)

Optional Parts
    Part Number
TPM security module (optional, not included)   AOM-TPM-9670V

Standard Parts (Parts Included)

Motherboard / Chassis MBD-H13SVW-NT Super H13SVW-NT Motherboard
Motherboard / Chassis

CSE-815BTS-R000WNP

1U Chassis
Backplane BPN-NVME5-LA15-S4 1U 4-Slot 3.5
Cable CBL-CDAT-0728 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
Cable CBL-MCIO-1270OT4S2-85 MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS
Cable CBL-0335L FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Cable CBL-PWCD-0160-IS PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0163L4 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Panel MCP-280-00033-0N Universal Thermal sensor kit with 80cm I2C cable
Front Panel FPB-FP815U 815 UIO front control board (U)
Power Supply PWS-861A-1R 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm
Power Supply MCP-250-81502-0N SC815 Redundant Power Distributor Cover
Riser Card RSC-W-66G5 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
Riser Card RSC-WR-6G5H 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software SFT-OOB-LIC License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062P-1 1U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Distributor PDB-PT116-SL8824 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Fan Holder CSE-PT0135 FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
*Fan Holder MCP-340-00035-0B Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
*Peripheral Drive CSE-PT93L-B Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*Drive Tray(s) MCP-220-00075-0B Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-00202-0N 1U WIO rear window to support top-load riser bracket for SC815B,SC116B
*Rail Set MCP-290-00016-0N 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
*Rail Set MCP-290-00054-0N Rail set, quick/quick, optional for 1U 17.2
*Air Shroud MCP-310-81506-0B Air block for 1U WIO SC815B with X13SEW
2.5" to 3.5" Toolless Converter Tray MCP-220-00118-0B • Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
GPU Kit CBL-PWEX-1240 GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM
GPU Kit CBL-0424L • GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm
GPU Kit MCP-310-81504-0B 1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4
NVMe Cable (Drive Bay 0-1) CBL-MCIO-1235M5Y • MCIO (x8 to 2 x4) STR,25CM,85OHM
NVMe Cable (Drive Bay 2-3) CBL-MCIO-1225M5Y • MCIO (x8 to 2 x4) STR,25CM,85OHM
Software SFT-DCMS-Single DataCenter Management Package (per node license)




Stránky o produktu:

https://www.supermicro.com/en/products/motherboard/h13svw-n











Parametry





Základní parametry
Určení:  Servery
Formát:  Speciální

Socket
Výrobce čipsetu:  AMD
Počet CPU socketů:  Single socket

Paměť
Typ paměti:  DDR5
Maximální frekvence paměti [MHz]:  4800
Podpora ECC:  ANO
M.2 slot:  2
