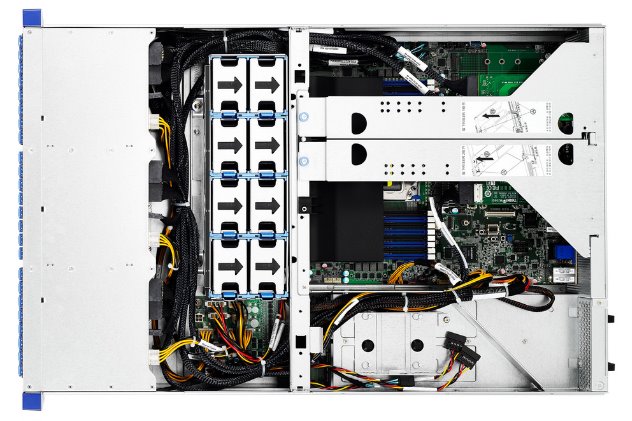

TYAN Transport HX 2U 4GPU server 2x SP3, 16x DDR4 ECC R, 8x.3,5 SATA/NMVe 2x 1600W (plat.), 2x 10Gb LAN, IPMI








  • TYAN Transport HX 2U 4GPU server 2x SP3, 16x DDR4 ECC R, 8x.3,5 SATA/NMVe 2x 1600W (plat.), 2x 10Gb LAN, IPMI
  • TYAN Transport HX 2U 4GPU server 2x SP3, 16x DDR4 ECC R, 8x.3,5 SATA/NMVe 2x 1600W (plat.), 2x 10Gb LAN, IPMI
  • TYAN Transport HX 2U 4GPU server 2x SP3, 16x DDR4 ECC R, 8x.3,5 SATA/NMVe 2x 1600W (plat.), 2x 10Gb LAN, IPMI










Kód:
M7B8251T83E8HR2TN4Y
P/N:
B8251T83E8HR-2T-N
Výrobce:

TYAN - server barebone

Záruka:
48 Měsíců



ks.


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:


Form Factor
2U Rackmount
Chassis Model TN83
Dimension (D x W x H) 32.71" x 17.25" x 3.43" (831 x 438.4 x 87mm)
Motherboard Name S8251GM2NE-2T #
Motherboard Notification # The motherboard not sold separately
Gross Weight 33.1 kg (73 lbs)
Net weight 20.3 kg (44.8 lbs)
Front Panel Buttons (1) UID / (1) PWR w/ LED / (1) RST
LEDs (1) HDD / (1) UID / (2) LAN / (1) System Event
I/O Ports (2) USB 3.1 Gen.1 ports
External Drive Bay Q'ty / Type (8) 3.5/2.5" Hot-swap HDD/SSDs
HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe
Supported HDD Interface (8) SATA 6Gb/s / NVMe
Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required.
System Cooling Configuration FAN (5) 8cm fans
Power Supply Type CRPS
Input Range AC 200-240V/12.6A
Frequency 47-63 Hz
Output Watts 2,200 Watts
Efficiency PFC / 80 plus Platinum
Redundancy 1+1
Processor Q'ty / Socket Type (2) AMD Socket SP3
Supported CPU Series (2) AMD EPYC™ 7002/7003 Series Processors
Thermal Design Power Wattage Max up to 240W* (cTDP)
#Notification 240W CPUs are supported with certain condition. Please contact Tyan Technical Support before purchasing
Memory Supported DIMM Qty (8)+(8) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS
Memory channel 8 Channels per CPU
Memory voltage 1.2V
Expansion Slots Pre-installed TYAN Riser Card (PCIe Gen.4) (1) M8251T83-L32-4F riser card for (2) FH/FL PCIe Gen.4 x16 + (2) FH/FL PCIe Gen.4 x8 slots (left) * split by Mux. / (1) M8251T83-R32-4F riser card for (2) FH/FL PCIe Gen.4 x16 + (2) FH/FL PCIe Gen.4 x8 slots (right) * split by Mux. / (1) M8251T83-LR32-2L riser card for (1) HH/HL PCIe Gen.4 x16 (right) +(1) HH/HL PCIe Gen.4 x16 (left) slots
Physical Dimension Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
LAN Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X550-AT2
PHY Realtek RTL8211E
Storage SATA Connector (8) SATA from (2) Slim SAS (8 ports) / (2) SATA-DOM
Controller Direct from AMD EPYC CPU
Speed 6Gb/s
RAID N/A
Storage NVMe Connector (U.2) (4) SFF-8654 for (8) front NVMe
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports USB (1) USB3.1 Gen.1 port (Type-A) / (2) USB3.1 Gen.1 ports (via Cable) / (2) USB3.1 Gen.1 ports (@ rear)
COM (1) header ( COM1 )
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10 GbE ports + (1) dedicated GbE for IPMI
SATA (2) SATA-DOM connectors / (8) SATA from (2) Slim SAS connectors
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0, S5
Operating System OS supported list Please refer to our AVL support lists.
Regulation FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90 90%, non-condensing at 35° C
Package Contains Barebone (1) TN83-B8251 Barebone
Manual (1) Quick Installation Guide
RoHS RoHS 6/6 Compliant Yes


Stránky o produktu:

https://www.tyan.com/Barebones_TN83B8251_B8251T83E8HR-2T-N











Parametry





Základní parametry
Provedení serveru:  GPU server
Formát:  2U

Procesor
Procesor:  AMD

Pevný disk
Typ řadiče:  SATA
Rozměr disků:  3,5"

Paměť
Typ paměti:  DDR4
Počet paměťových slotů:  16
