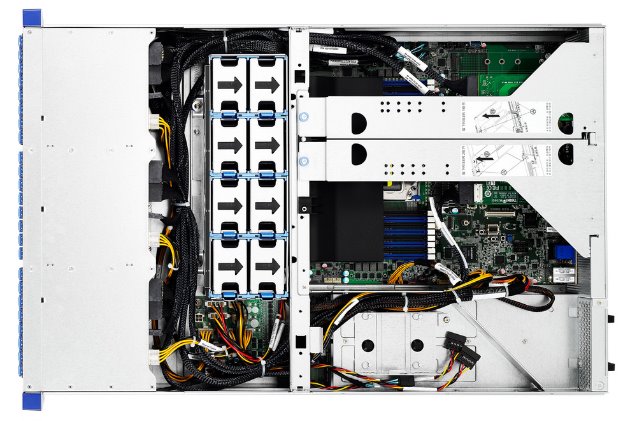

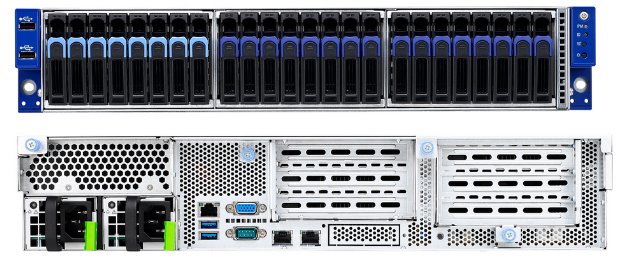

TYAN Transport SX 2U server 1x SP3, 16x DDR4 ECC R, 24x U.2, 2x770W (platinum), 2x 1Gb LAN + OCP, IPMI

Popis produktu:

Tyan Transport SX TN70AB8026 (B8026T70AE24HR) (BTO) Specifications


System  Form Factor 2U Rackmount
Chassis Model TN70A
Dimension (D x W x H) 27.56" x 17.72" x 3.43" (700 x 450 x 87mm)
Motherboard Name S8026GM2NRE
Gross Weight 30 kg (66 lbs)
Net weight 19 kg (42 lbs)
Front Panel  Buttons (1) RST / (1) ID / (1) PWR w/ LED
LEDs (1) ID / (1) Warning
I/O Ports (2) USB 2.0 ports
External Drive Bay  Q'ty / Type (24) 2.5" Hot-Swap NVMe
HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s / NVMe
Supported HDD Interface (24) NVMe
Internal Drive Bay   Type / Q'ty (2) 2.5" fixed HDD/SSDs
Supported HDD Interface (2) SATA 6Gb/s
System Cooling Configuration  FAN (8) 6cm fans
Power Supply  Type RPSU
Input Range AC 100-127V/10A / AC 200-240V/5A
Frequency 50-60 Hz
Output Watts 770 Watts
Efficiency 80 plus Platinum
Redundancy 1+1
Processor  Q'ty / Socket Type (1) AMD Socket SP3
Supported CPU Series (1) AMD EPYC™ 7001/7002 Series Processor
Thermal Design Power (TDP) Wattage Max up to 180W
Memory  Supported DIMM Qty (16) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM 2666/2400
Capacity Up to 1,024GB RDIMM/LRDIMM
Memory channel 8 Channels per CPU
Memory voltage 1.2V
Notification LRDIMM is not supported when AMD EPYC™ 7002 Series Processors deployed in all configurations. Please contact Tyan Technical Support for more details.
Expansion Slots  PCI-E (1) PCI-E Gen3 x8 slot (HH / HL w/ tall bracket)
Pre-installed TYAN Riser Card
(PCI-E Gen3) (1) M7106-L24-3F riser card for (1) PCI-E Gen3 x16 + (2) PCI-E Gen3 x8 slots (right) / (1) M7106-R24-3F riser card for (1) PCI-E Gen3 x16 + (2) PCI-E Gen3 x8 slots (right)
Pre-installed TYAN Mezz. Card
(PCI-E Gen3) (2) M2093 storage mezz. cards w/ (4) PCI-E x8 SFF-8611 OCuLink connectors for (8) NVMe ports (deployed on 2 pre-installed riser cards)
Others (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) /
*Without using OCP 2.0 Mezz. card, please contact with Tyan technical support for details.
Physical Dimension
Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
LAN  Q'ty / Port (2) GbE ports, (1) GbE dedicated for IPMI
Controller Broadcom BCM5720
PHY Realtek RTL8211E
Storage SATA Connector (2) SATA
Controller Direct from AMD EPYC CPU
Speed 6Gb/s
RAID N/A
Notification The rear 2 SATA SSDs/HDDs are not available when AMD EPYC™ 7002 Series Processors deployed in all configurations. Please contact Tyan Technical Support for more details.
NVMe Connector (OCuLink) (4) SFF-8612 for (8) NVMe ports via (2) Tyan M2093 PCI-E Gen3 x16 Cards / (8) SFF-8612 for (16) NVMe ports
Connector (M.2) (2) 22110/2280/2260/2242 (by PCI-E & SATA interface)
Notification 2 onboard M.2 connectors shall support NVMe only when AMD EPYC™ 7002 Series Processors deployed in all configurations. Please contact Tyan Technical Support for more details.
Graphic  Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports  USB (3) USB3.0 ports (2 @ rear, 1 TYPE-A) / (2) USB2.0 ports (2 @ front)
COM (1) DB-9 port (COM1) + (1) header (COM2)
VGA (1) D-Sub 15-pin port
RJ-45 (2) GbE ports, (1) dedicated GbE for IPMI
TPM (Optional)  TPM Support Please refer to our TPM supported list.
System Monitoring  Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management   Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS  Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5
Operating System  OS supported list Please refer to our AVL support lists.
Regulation  FCC (DoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Class A
VCCI Class A
Operating Environment   Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS  RoHS 6/6 Compliant Yes
Package Contains  Barebone (1) TN70A-B8026 Barebone
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
