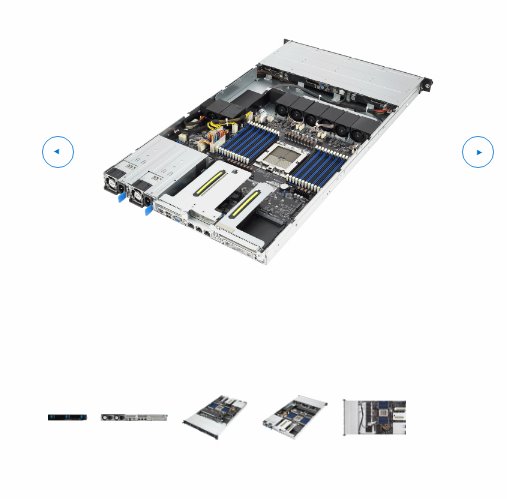

ASUS 1U RS501A-E12-RS4 1 xSP5 (LGA 6096) 24xDDR5 4xSATA/NVME/OCP/2x1G LAN/1,6KW








  • ASUS 1U RS501A-E12-RS4 1 xSP5 (LGA 6096) 24xDDR5 4xSATA/NVME/OCP/2x1G LAN/1,6KW










Kód:
ASRS501AE12RS4
P/N:
90SF03Y1-M000N0
Výrobce:

ASUS




ks.


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
Asus Computer GmbH
Harkortstraße 21 - 23, 40880 Ratingen, Germany
https://www.asus.com/de/
  •


Podrobnosti o produktu





Popis produktu:

  •  Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
    AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)

    Memory

    24 x DIMM slots

    with AMD EPYC™ 9005 series processors
    DDR5 6400/5600 RDIMM/3DS RDIMM
    Maximum 2,304GB
    2DPC (1 of 2) up to 5200 with "6400 RDIMM", other 4800
    2DPC (2 of 2, 1R+1R ) up to 4400, with "6400 RDIMM", other 4000
    2DPC (2 of 2, 2R+2R ) up to 4000, with "6400 RDIMM", other 3600

    with AMD EPYC™ 9004 series processors
    DDR5 4800 RDIMM/ 3DS RDIMM
    Maximum2,304GB
    2DPC (1 of 2) up to 4800,
    2DPC (2 of 2, 1R+1R ) up to 4000
    2DPC (2 of 2, 2R+2R ) up to 3600

    * Refer to support page for more information

    Expansion Slots

    Up to 3 PCIe Gen5 slots + 1 OCP3.0
    1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
    1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
    1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
    1 x OCP3.0 socket (Gen5 x16 link)

    Storage

    Storage Controller :
    CPU Integrated
    Optional kits Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

    Drive Bays

    Front bays:
    4 x 3.5"/2.5” Hot-swap Storage Bays
    4 x NVMe/SATA/SAS

    *MCIO CABLE is required to support
      NVMe hard drives
    *SAS support only from optional SAS
      HBA/RAID card

    2 x M.2 connectors

    Networking

    1 x Dual Port Intel I350-AM2 GbE LAN Controller
    1 x Management Port

    Graphic

    Up to 2 single-slot GPU cards

    Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/GPU

    Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

    Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x Management port
    2 x 1GbE LAN ports

    Switch/LED

    Front:
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    1 x HDD LED
    4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
    Rear:
    1 x Port80 LED (Q-Code)
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED

    OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

    Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)

    Regulatory Compliance

    BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®

    Dimensions

    842.5mm x 449mm x 43.85mm (1U)
    33.17" x 17.68" x 1.73"

    Form Factor

    1U

    Weight

    (approximate)
    Net Weight: 13.15 kg
    Gross Weight: 18.15 kg

    Power Supply

    1+1 Redundant 1600W 80 PLUS Titanium
    Power Supply
    1+1 Redundant 1200W 80 PLUS Platinum
    Power Supply

    Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)

    Note
    Operating Temperature based on configurations

    Optional Items

    Rail Kit:
    Tool-less Friction Rail Kit
    1.2m Half Extension Ball bearing Type Rail Kit
    1m Half Extension Ball bearing Type Rail Kit
    1U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if cable arm needed.
    1U Front Bezel

    Note

    Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.


Stránky o produktu:

https://servers.asus.com/products/Servers/Rack-Servers/RS501A-E12-RS4/#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  1U

Procesor
Procesor:  AMD

Paměť
Typ paměti:  DDR5
