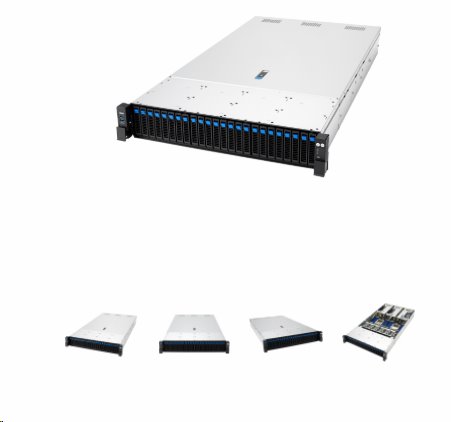

ASUS 2U RS720A-E13-RS24/3.2K/24N/G 2x SP5 (LGA 6096P) 24x DDR5 / 24x NVMe / GPU / 1x LAN / 3.2kW

Popis produktu:

• Processor / System Bus

  2 x Socket SP5 (LGA 6096P)
  AMD EPYC™ 9005 processors (Up to TDP 500W)
  *TDP support by configuration.

• Generation

  E13

• Memory

  Total Slots :
  24 (12-channel per CPU, 1 DIMM per CPU)
  Capacity :
  Total Maximum up to 3072GB
  Memory Type :
  DDR5 6400/5600 RDIMM/ 3DS RDIMM
  Memory Size :
  128GB, 96GB, 64GB, 32GB RDIMM
  128GB, 96GB, 64GB, 32GB 3DS RDIMM
  * Refer to www.asus.com/support for more information

• Expansion Slots

  Total 10 expansion slots
  6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
  2 x PCIE Gen5 x16 (FHHL)
  2 x OCP3.0 Gen5 x16 (SFF)

• Drive Bays

  24 x 2.5" hot-swap drive bays
  Support 8x NVMe + 16x NVMe/SATA/SAS*

  *HBA/ RAID card is required to support SAS hard drives

• System Fan

  6

• Networking

  1 x Management Port

• Graphic

  Aspeed AST2600 64MB

• Front I/O Ports

  2 x USB 3.2 Gen1 ports

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x Mini-DP port
  1 x RJ-45 Management LAN port
  1 x Debug port

• Switch/LED

  Front Switch/LED:
  1 x Power Switch w/ LED
  1 x Reset Switch
  1 x Location Switch w/ LED
  1 x HDD Access LED
  1 x Message LED
  Rear Switch/LED:
  1 x Power Switch w/ LED
  1 x Location Switch w/LED
  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  On-Board ASMB12-iKVM for KVM-over-IP
  ASUS Control Center Enterprise (Classic C)(Optional)

• Regulatory Compliance

  BSMI, CE, CB, RCM, FCC(Class A), ISED

• Dimensions

  822.16(L) x 484.65(W) x 87.3(H) mm
  32.37(L) x 19.08(W) x 3.44(H) inch

• Form Factor

  2U

• Weight

  Net Weight : 17.82KG
  Gross Weight : 21.34KG

• Power Supply

  1+1 Redundant 80 PLUS 3200W Titanium PSU
  1+1 Redundant 2700W Titanium PSU

  Rating:
  100-120V~/220-240V~, 16A (x2), 50/60Hz
  100-127V~/220-240V~, 12A/16A (x2), 50-60Hz

• Environment

  Operation temperature: 10? ~ 35?
  Non operation temperature: -40? ~ 60?
  Non operation humidity: 20% ~ 90% (Non condensing)

• Optional Items

  Security:
  Dual BMC Module (default)
  TPM Module (MUST bundle with ASUS server while placing order if required.)

  Accessory:
  2U Front Bezel
  1.5U Height Full Extension Ball bearing Type Rail Kit
  Cable arm (Please consult sales if required.)

• Note

  *SAS support only from SAS HBA/RAID Card

• CPU Heatsink/ Cooler

  2 x 2U EVAC Heatsink

• FRU Part List

  Motherboard: 90SB0D10-M1XBN0
  Front Panel Board: 90SC0SQ0-M0XBN1
  Switch Board: 90SC0TK0-M0XBN1
  Backplane: 90SC0TL0-M0XBN1
  Riser Card 2-Slot (Slot1/2 or 3/4): 90SC0SL0-M0XBN1
  Riser Card 2-Slot (Slot 5/6): 90SC0SM0-M0XBN1
  Riser Card 1-Slot (Slot 7 or 9): 90SC0SP0-M0XBN1
  DC-SCM Board: 90SC0SI0-M2XBN1
  Fan Board: 90SC0SU0-M0XBN1
  SATA/SAS Cable (BAY1-8): 90SKS000-MPHAN0
  SATA/SAS Cable (BAY9-16): 90SKS000-MPDAN0
  NVMe Cable (BAY1-6 or BAY7-12): 90SKS000-MPIAN0
  NVMe Cable (BAY13-18): 90SKS000-MPKAN0
  NVMe Cable (BAY19-24): 90SKS000-MPJAN0
  2.5" HDD Tray: 90SKH000-MPPBN0
  2U CPU EVAC HS: 90SKS000-MPZAN0
  PSU CRPS 3200W Titanium//DELTA: 90SKS000-MMCBN0
  PSU CRPS 2700W Titanium//DELTA: 90SKS000-MM2BN0
  1.5U Full Extension Slide Rail: 90SKR000-M07AN0
  R2P-B Cable Arm: 90SKS000-M23AN0
