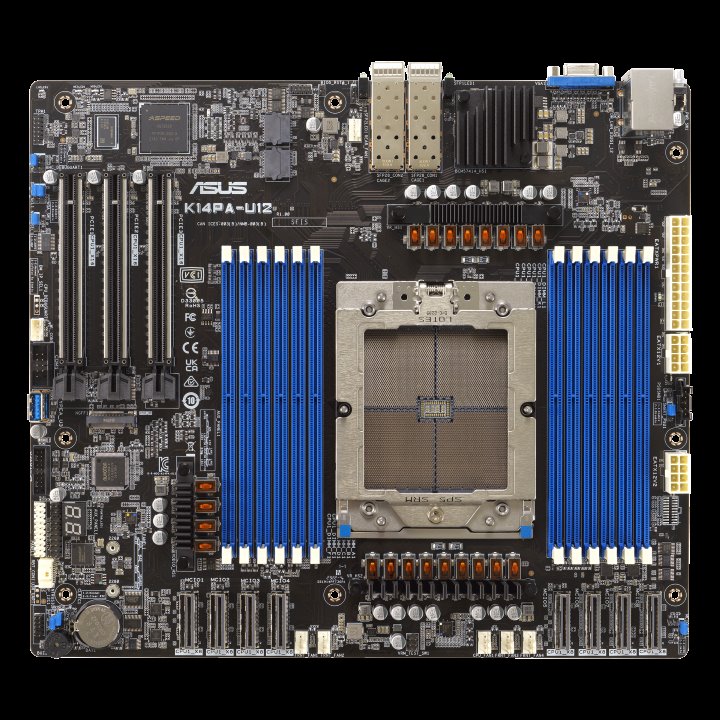

ASUS MB K14PA-U12 1x SP5, 12x DDR5 ECC R, 1xm.2, 2x 25Gb SFP28, IPMI

Popis produktu:

• Processor / System Bus

  1 x Socket SP5 (LGA 6096)
  AMD EPYC™ Genoa Processor (up to 400W)

• Memory

  Total Slots:
  12 (12-channel, 1-DIMM per Channel)
  Capacity:
  Maximum up to 3TB
  Memory Type:
  DDR5 4800 RDIMM/3DS RDIMM
  Memory Size:
  256GB, 128GB, 96GB, 64GB, 48GB, 32GB, 24GB, 16GB (RDIMM) (RDIMM)
  *Please refer to www.asus.com for latest momory AVL update

• Expansion Slots

  Total Slot : 3
  3 x PCIe 5.0  (x16 link, FL)

• Form Factor

  CEB, 12" x 10.5"

• Storage

  M.2
  1 x M.2 (PCIe Gen5x4, support 2280) (SATA Mode support)
  MCIO
  6 x MCIO connector (PCIe Gen5x8), support 12 x NVMe drives
  2 x MCIO connector (PCIe Gen5x8), support 16 x SATA drives or 4 x NVMe drives

• Networking

  2 x SFP28 25Gb/s (Broadcom BCM57414B1KFSBG) +1 x Mgmt LAN

• On Board I/O

  1 x USB 3.2 Gen1 header (2 port for front panel)
  1 x USB 3.2 Gen1 port (1 port Type-A vertical)
  1 x Serial port header
  6 x FAN header (4-pin)
  1 x TPM header
  1 x Chassis Intruder header (2-pin)

• Back I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port
  2 x SFP28 25Gb/s
  1 x RJ-45 Management port

• Management Solution

  ASUS Control Center
  ASMB11-iKVM module for KVM-over-Internet

• Environment

  Operation temperature: 10? ~ 35?
  Non operation temperature: -40? ~ 70?
  Non operation humidity: 20% ~ 90% ( Non condensing)

• Accessories

  Gift Box (1-in-1)
  1 x I/O shield
  1 x Com port cable
  1 x Double M.2 screw
  4 x Rubber
  Bulk Pack (10-in-1)
  1 x I/O shield
  1 x Double M.2 screw
  4 x Rubber
