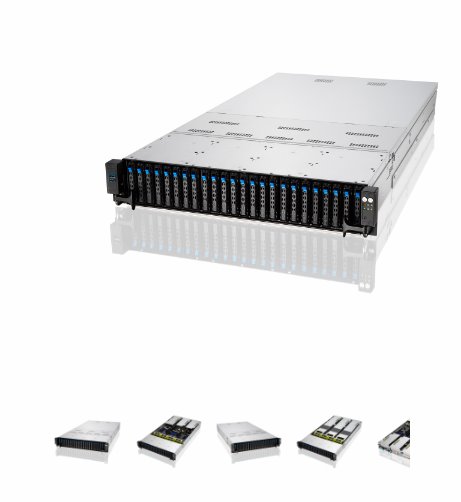

ASUS RS720A 2U Server 2XSP3,24x DDR4 ECC. 24xNVME

Popis produktu:

• Processor / System Bus

  2 x Socket SP3 (LGA 4094)
  AMD EPYC™ 7003 Series
  AMD EPYC™ 7002 Series
  Max TDP : 280W

• Generation

  E11

• Memory

  Total Slots :
  32 (8-channel per CPU, 16 DIMM per CPU) Option 1
  Capacity :
  Maximum up to 4096GB per socket
  Memory Type :
  Dual Channel DDR4 3200/2933 RDIMM
  Dual Channel 3200/2933 LRDIMM
  Dual Channel 3200/2933 LR-DIMM 3DS non ECC
  Memory Size :
  64GB, 32GB, 16GB RDIMM
  128GB, 64GB LRDIMM
  256GB, 128GB, 64GB LR-DIMM 3DS
  * Refer to support page for more information

• Expansion Slots

  Up to 9 x Expansion slots
  2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1)
  1 x PCIe Gen4 x8, FHFL (CPU1 x1)
  1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1)
  4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2)
  1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1)
  *Installing GPU cards will occupied expansion slots.

• Storage

  Storage Controller :
  8 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)
  2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
  SAS Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
  Broadcom MegaRAID 9560-16i (Optional)

• Drive Bays

  Support 24 NVMe SKU:
  24 x 2.5" hot-swap drive bays (16xNVMe + 8NVMe/SATA/SAS*)
  2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
  Support 12 NVMe SKU:
  24 x 2.5" hot-swap drive bays (12xNVMe + 8SATA/SAS*)
  2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
  2 x 2.5" hot-swap drive bays (2x SATA/NVMe)(optional rear bays)
  *must with PIKE/RAID card

• System Fan

  4

• Networking

  Option 1
  1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
  or
  Option 2
  1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
  or
  None x + 1 x Mgmt LAN

• Graphic

  Aspeed AST2600 with 64MB VRAM

• Multi-GPU Support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

• Front I/O Ports

  2 x USB 3.2 Gen1 ports

• Rear I/O Ports

  2 x USB 3.2 Gen1 ports
  1 x VGA port
  1 x RJ-45 Mgmt LAN port
  1 x OCP3.0 port (Please remember to insert OCP3.0 Board)

• Switch/LED

  Front Switch/LED:
  1 x Power switch (w/LED)
  1 x Reset Switch
  1 x Location Switch (w/LED)
  1 x HDD Access LED
  1 x Message LED LAN 1-4 LED (on NIC Module)
  Rear Switch/LED:
  1 x Power switch w/LED
  1 x Port 80 LED(Q-Code)
  1 x Location Switch w/LED
  1 x Message LED

• OS Support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management Solution

  On-Board ASMB10-iKVM for KVM-over-IP
  ASUS Control Center Enterprise (Optional)

• Regulatory Compliance

  BSMI, CE, FCC(Class A)

• Dimensions

  840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")

• Form Factor

  2U

• Weight

  Net Weight : 21.64KG
  Gross Weight : 27.85KG

• Power Supply

  1+1 Redundant 1600W 80 PLUS Platinum Power Supply
  Rating:
  100-127/200-240Vac,13A/9.5A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)
  200-240Vac,10A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China;100-127Vac, 12A only for NA)
  1+1 Redundant 2400W 80 PLUS Titanium Power Supply
  *2400W RPSU is required while choosing GPU SKU

• Environment

  Operation temperature: 10? ~ 35?
  Non operation temperature: -40? ~ 60?
  Non operation humidity: 20% ~ 90% (Non condensing)

• Optional Items

  Standard Cooling Solution or
  Water Cooling Solution

• Note

  *If only 1 CPU is installed, some functions might be not available.
  *SAS support only from SAS HBA/RAID Card
  *If PCIe expansion slot 3 choosing OCP3.0 option, slot 4 will be limited to support PIKE card only

• CPU Heatsink/ Cooler

  2

• Fan

  1 (For supporting GPU SKU, it will have external fan)
