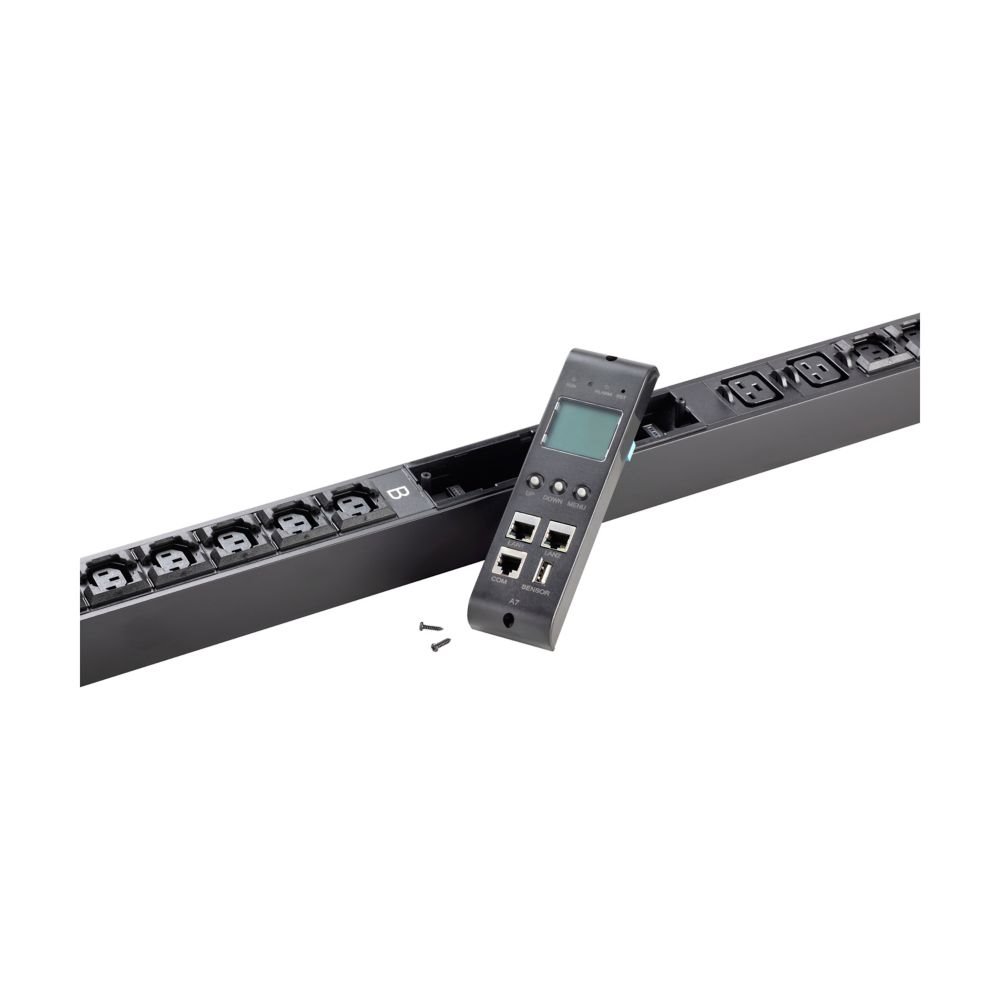

EATON FlexPDU G2: Měřený vstup 1U, In: C20 16A 1P - Out: 8xC13

Popis produktu:

FLXTMIC20C1
Kód modelu: PDU FLXG2 MI 1U C20 1P 16A 8xC13
Eaton Metered Input FlexPDU Gen2, 1U, 1U, C20 input, 2.5m cord, 1ph, 3.7kW, 16A, 200-240V, 8 outlets (8)C13

General specifications
Product Name
Eaton Flex PDU G2
Catalog Number
FLXTMIC20C1
EAN
3553340697388
Product Length/Depth
44.5 mm
Product Height
484 mm
Product Width
180 mm
Product Weight
3 kg
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Certifications
EN IEC 63000
EN 55032
RCM
Ukr
CE
EAC
Cm
IEC 62368-1
Model Code
PDU FLXG2 MI 1U C20 1P 16A 8xC13
Technické údaje produktu
Special features
Locking outlets
Pure copper used for main circuit conductors
High-temperature resilience up to 50°C
Measurement accuracy ±1%
Ethernet port speed 10/100 Mbs
Supported protocols and standards: HTTPS, SSH v2, SNMP, SMTP, DHCP, RADIUS, NTP, TELNET, as well as IPv4 and IPv6
Full-featured network management through Web or SNMP
Hot-swappable network Management module
Metered input measurement (current, power, energy consumption, power factor, etc.)
Type
Rack PDU
Form factor
0U (Vertical)
Outlet control
No
Package contents
Rack PDU
Mounting accessories
Quickstart guide
Safety Instructions
Operating Temperature
32° to 122°F (0° to 50°C)
Mounting direction
Vertical
Color
Black
Input connection
IEC-320 C20
Cord length
2.5m
Wattage
3.7 kW max
Amperage Rating
16A
Electric current - max
16 A
Input voltage
200-240V
Phase
Single-phase
Frequency rating
50/60 Hz
Outlets
8 outlets (8)C13
Number of Outputs 5-15R
0
Number of Outputs 5-20R
0
Number of Outputs 6-15R
0
Number of Outputs 6-20R
0
Number of Outputs L14-30R
0
Number of Outputs L5-20R
0
Number of Outputs L5-30R
0
Number of Outputs L6-20R
0
Number of Outputs L6-30R
0
Number of Outputs C13
8
Number of Outputs C19
0
Number of Outputs C20
0
Number of outputs hardwired
0
Num of Outputs PC (SCHUKO)
0
Number of outputs (other)
0
Number of outlets with earth pin
8
No of Outlet Suisse Stndrd Type13
0
No of Outlet Suisse Stndrd Type15
0
No of Outlet Suisse Stndrd Type23
0
No of Outlet Suisse Stndrd Type25
0
Number of UK BS1363 sockets
0
Circuit breaker
0
SNMP
Yes
Ethernet interface
Yes
Electrical connection
Connecting cord with plug
Evaluation
Other
Mounting Dimension (metrical)
484
Mounting dimension (standardized)
Other
Switchable
No
Over voltage category
2
Fitted with:
Display
LED indication
Mounting material
Communication
Yes
With surge protection module
No
Amperemeter
Yes
Number of USB connections
1
Number of RJ45 sockets
3
