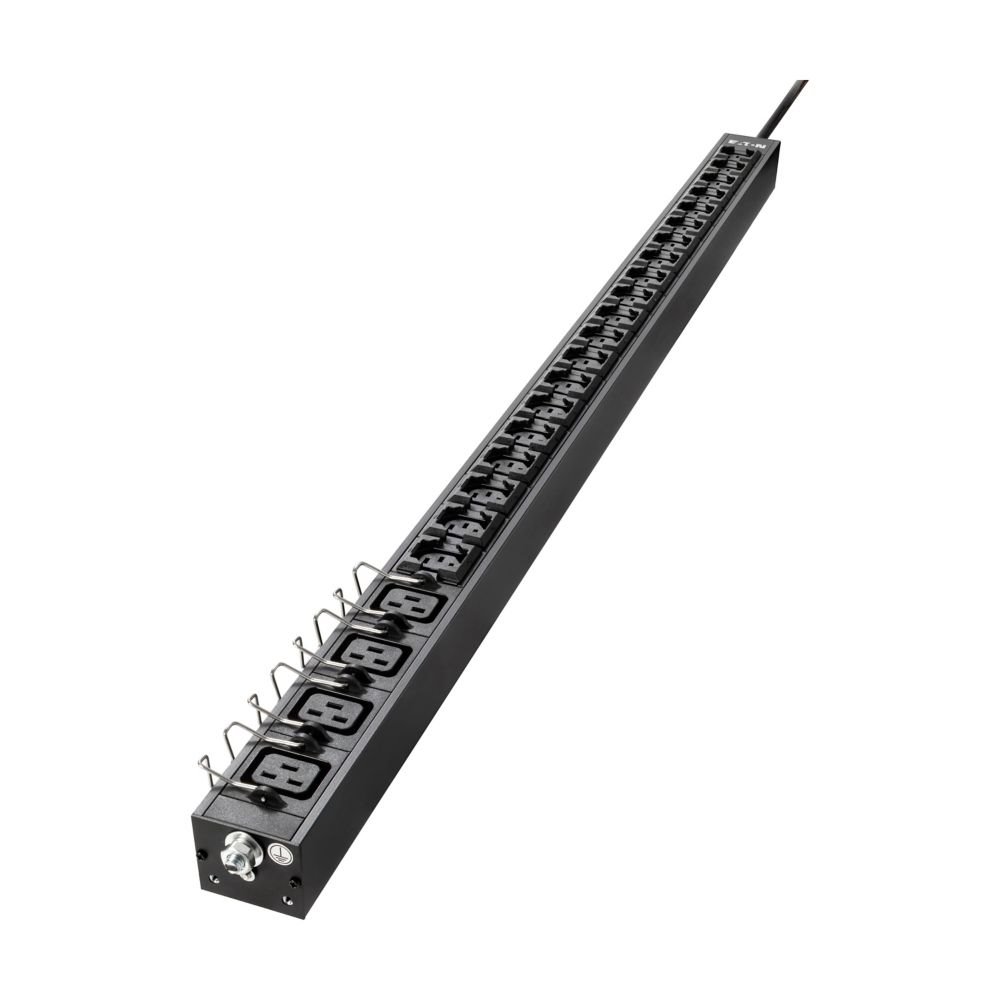

EATON FlexPDU G2: Základní 0U, In: C20 16A 1P - Out: 20xC13:4xC19

Popis produktu:

FLXTBAC20C2
Kód modelu: PDU FLXG2 BA 0U C20 1P 16A 20xC13,4xC19
Eaton Basic FlexPDU G2, 0U, 22U, C20 input, 2.5m cord, 1ph, 3.7kW, 16A, 200-240V, 24 outlets (20)C13, (4)C19

General specifications
Product Name
Eaton Flex PDU G2
Catalog Number
FLXTBAC20C2
EAN
3553340697357
Product Length/Depth
44.4 mm
Product Height
967 mm
Product Width
52 mm
Product Weight
3.2 kg
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Certifications
EN IEC 63000
EN 55032
RCM
Ukr
CE
EAC
Cm
IEC 62368-1
Model Code
PDU FLXG2 BA 0U C20 1P 16A 20xC13,4xC19
Technické údaje produktu
Special features

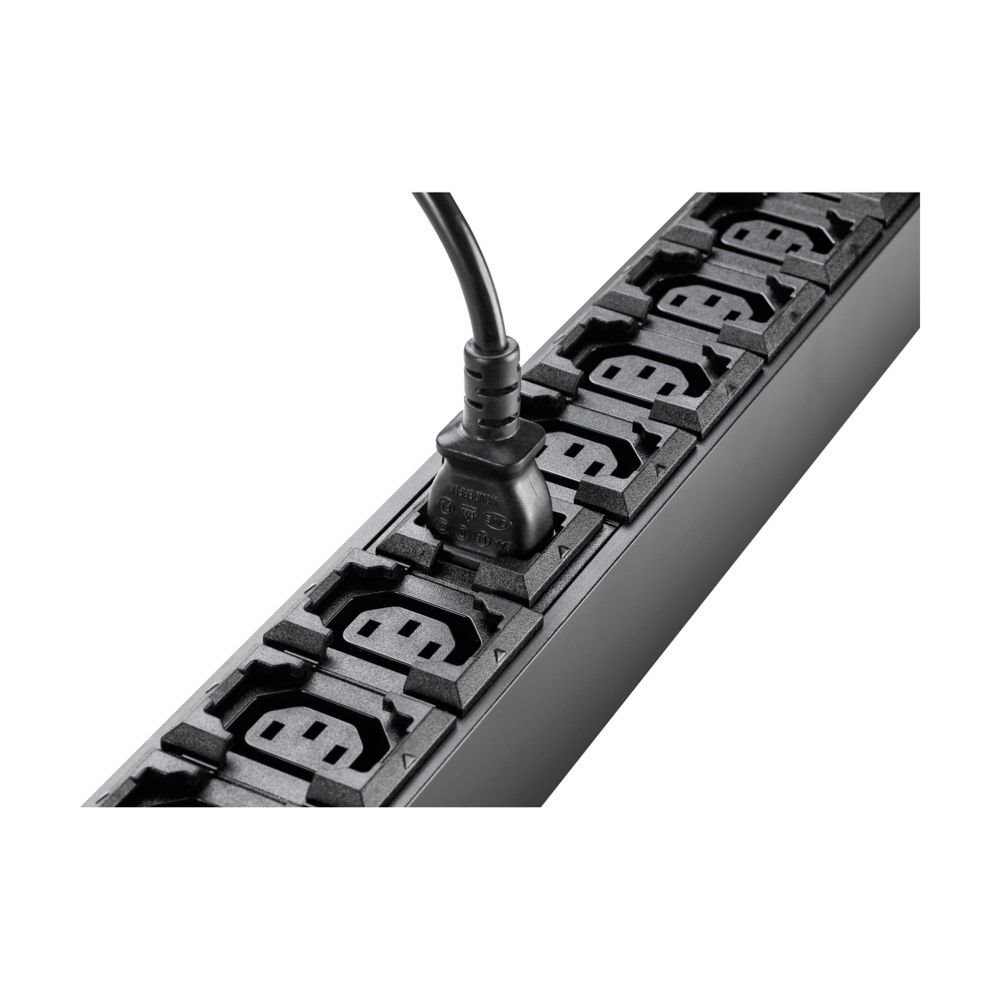

Locking outlets
Pure copper used for main circuit conductors
High-temperature resilience up to 50°C
Type
Rack PDU
Form factor
0U (Vertical)
Outlet control
No
Package contents
Rack PDU
Mounting accessories
Quickstart guide
Safety Instructions
Operating Temperature
32° to 122°F (0° to 50°C)
Mounting direction
Vertical
Color
Black
Input connection
C20
Cord length
2.5m
Wattage
3.7 kW max
Amperage Rating
16A
Electric current - max
16A
Input voltage
200-240V
Phase
Single-phase
Frequency rating
50/60 Hz
Outlets
24 outlets (20)C13 (4)C19
Number of Outputs 5-15R
0
Number of Outputs 5-20R
0
Number of Outputs 6-15R
0
Number of Outputs 6-20R
0
Number of Outputs L14-30R
0
Number of Outputs L5-20R
0
Number of Outputs L5-30R
0
Number of Outputs L6-20R
0
Number of Outputs L6-30R
0
Number of Outputs C13
20
Number of Outputs C19
4
Number of Outputs C20
0
Number of outputs hardwired
0
Num of Outputs PC (SCHUKO)
0
Number of outputs (other)
0
Number of outlets with earth pin
24
No of Outlet Suisse Stndrd Type13
0
No of Outlet Suisse Stndrd Type15
0
No of Outlet Suisse Stndrd Type23
0
No of Outlet Suisse Stndrd Type25
0
Number of UK BS1363 sockets
0
Circuit breaker
0
SNMP
Yes
Electrical connection
Connecting cord with plug
Evaluation
Other
Mounting Dimension (metrical)
967
Mounting dimension (standardized)
Other
Switchable
No
Over voltage category
2
Amperemeter
No
With surge protection module
No
Fitted with:
Mounting material
Number of USB connections
0
Number of RJ45 sockets
0
Accessory
No

Stránky o produktu:

https://www.eaton.com/cz/cs-cz/skuPage.FLXTBAC20C2.html
