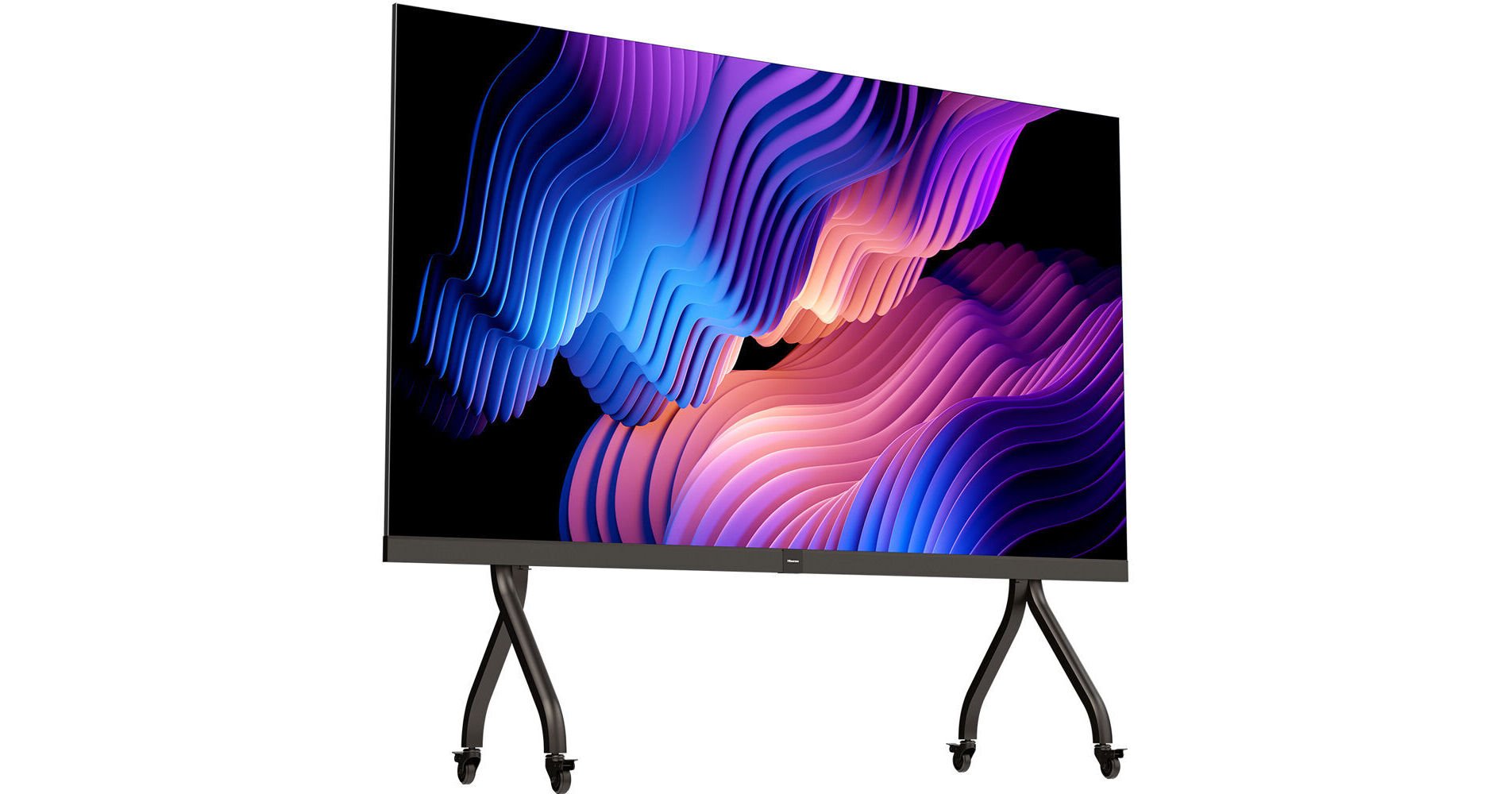

Hisense HAIO136DE , 136” LED All-in-one Display

Popis produktu:

Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Equipped with Hisense’s unique ASIC picture quality solution for precision dimming it controls each LED pixel to accurately express brightness and chromaticity information. Delivering vivid detail and unrivalled colour depth, the All-in-one 136” LED display will provide finishing touch to any quality meeting space.

Physical
Pixel Pitch: 1.5625mm
Pixel Configuration: Flip-Chip COB (1 Red, 1 Green, 1 Blue)
Screen Resolution (WxH): 1920 x 1080
Module Dimensions (WxH): 150 x 337.5mm / 5.9 x 13.3 inch
No. of Modules Per Screen (WxH): 20 x 5 (Total 100 Pcs LED Modules)
Screen Dimensions (WxHxD) With Screen Frame: 3004 x 1774.5 x 32.3mm* / 118.3 x 69.9 x 1.27 inch*
Product Dimensions (With Mobile Cart) *With Screen Frame: 3004 x 2439.5 x 903.7mm* / 118.3 x 96.04 x 35.57 inch*
Panel/Cabinet Dimensions (WxHxD): 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
Weight (per panel / screen): 4kg / 110kg // 8.82lbs / 242.55lbs
Pixel Density: 409,600 pixels/m2
Flatness of Cabinet (mm/inch): ±0.05mm
Cabinet Material: Die-cast Aluminium
Grey Level: 14 bits
Colour Gamut: >113% DCI-P3
Aspect Ratio: 16:9
Service Access: Front


Optical
Brightness (max./peak.): 1,000 / 1,600 nits
Contrast Ratio: 40,000:1 @10lux
Visual Viewing Angle (HxV): 165° x 150°
Brightness Uniformity: 98%
Colour Uniformity: ±0.003 Cx,Cy
Processing Depth: 14 bits
Colour Temp - Default (Adjustable): 6500 K (2,000 ~ 9,300 K)


Electrical
Power Supply Voltage: 100-240V, 50/60Hz
Average Power Consumption (W/Screen): ?650@1,000nits / ?500@600nits
Max Power Consumption (W/Screen): ?1900@1000nits / ?1250@600nits
Refresh Rate: 3,840Hz (typ.) / up to 7,680Hz
WiFi: 2.4G & 5G
Bluetooth: 5.0
Input:
HDMI(2.0) IN x3 (include 1 internal)
USB2.0 x1
USB3.0 /
Type-C (not full function) x1
RS-232 x1 (internal)
LAN x1
Output:
SPDIF x1
Audio Out x1

Operation Conditions
Operating Temp/Humidity: 0 - 40°C / 10% - 90%RH (no frost)
Storage Temp/Humidity: -20 - 40°C / 10% - 65%RH (no frost)
Expected LED Lifetime (typ): 100,000 Hrs

Speaker
Built-in: 10W x 6
External: 3.5mm Audio external sound system connector (prior to the built-in sound system connector)


System
OS: Android 9.0
CPU: CA73*4 1.3GHz
GPU: G52 MC1
DDR: 3GB
ROM: 64GB
Language: Chinese / English (Default) / French / German / Spanish / Italian / Polish / Arabic / Russian


Package Solution 1 (Flight Case)
Packing Method: Flight case for Cabinets / Modules / Wall Bracket and Accessory
Packaging Dimensions (WxHxD): 1005 x 2055 x 765mm / 39.56 x 80.90 x 30.12 inch
Net / Gross Weight (w Wall Bracket): 110kg / 200kg // 242.50lbs / 440.92lbs


Mobile Cart (Optional)
Packaging Method: Wooden Box (For Mobile Cart) (Option)
Packaging Dimensions (WxHxD): 2415 x 255 x 855mm / 95.1 x 10 x 33.7inch
Net / Gross Weight: 50kg / 90kg // 110.23lbs / 198.42lbs


Miscellaneous
Curve Support (-:concave +:convex):  Flat, Flat
Controller: Embedded
Standard Accessory: User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket
Optional Accessory: Mobile Cart (LGT60401A) / Hisense Dongle (HT002)* / Camera (HMC03-1080P, 25M)* / OPS (S02BDS7AA21E/5A811E)

Available Regions
EU
APAC
SA
USA

*Not available in the US market
