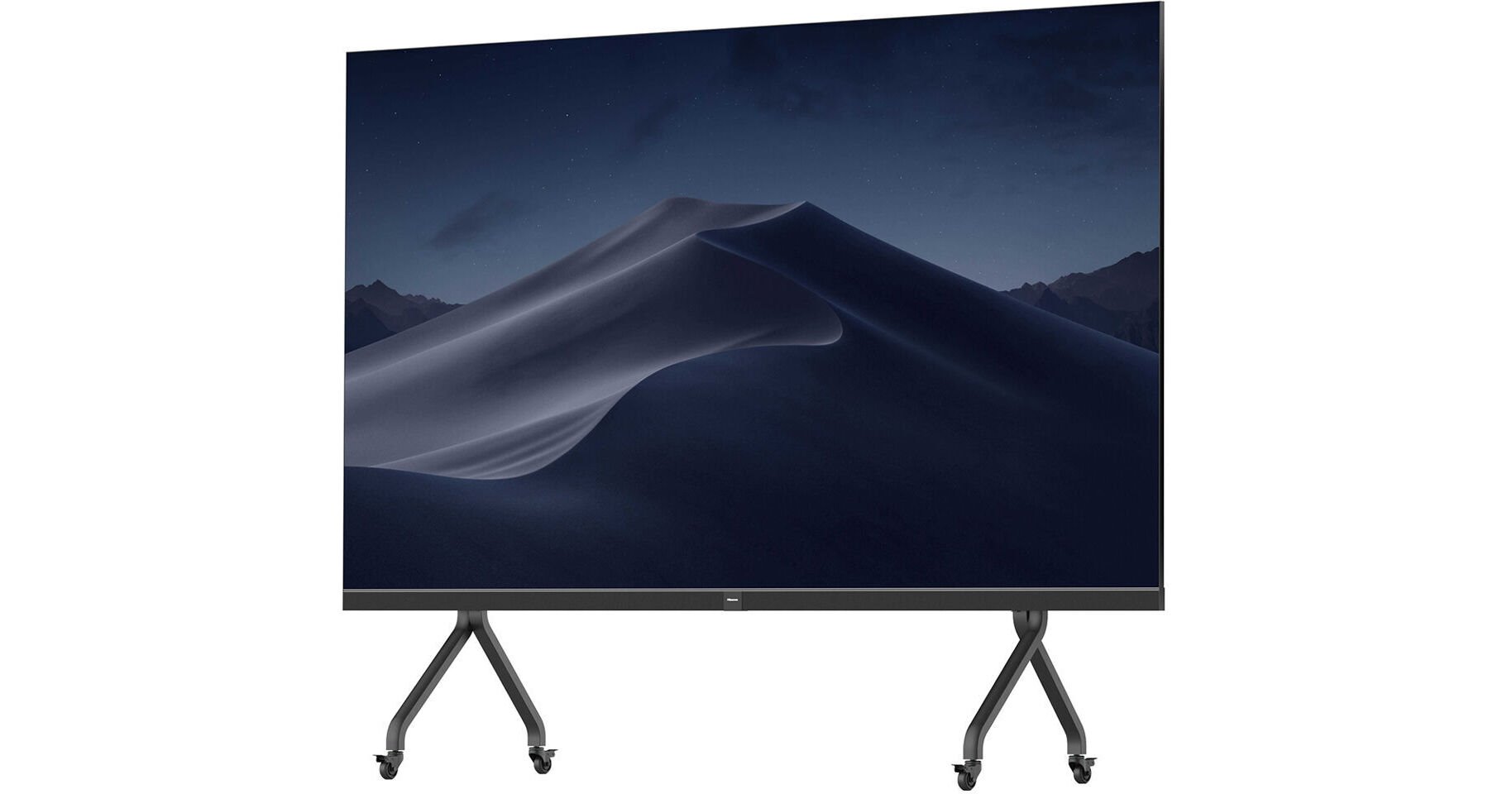

Hisense HAIO163DE, 163” LED All-in-one Display

Popis produktu:

Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled color depth, the All-in-one 163” LED display will provide finishing touch to any quality meeting space.

Physical
Pixel Pitch: 1.875mm
Pixel Configuration: 3 in one SMD (with Glue On Board)
Screen Resolution (WxH): 1920 x 1080
Module Dimensions (WxH): 150 x 337.5mm / 5.9 x 13.3 inch
No. of Modules Per Screen (WxH): 24 x 6 (Total 144 Pcs LED Modules)
Screen Dimensions (WxHxD) *With Screen Frame: 3604 x 2112 x 32.3mm* / 141.8 x 83.1 x 1.27 inch*
Product Dimensions (With Mobile Cart) *With Screen Frame: 3604 x 2662 x 1086.8mm* / 141.8 x 104.8 x 42.7 inch*
Panel/Cabinet Dimensions (WxHxD): 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
Weight (per panel / screen): 4kg / 162kg // 8.82lbs / 357.14lbs
Pixel Density: 284,444 pixels/m2
Flatness of Cabinet (mm/inch): ±0.05mm
Cabinet Material: Die-cast Aluminium
Grey Level: 14 bits
Aspect Ratio: 16:9
Service Access: Front


Optical
Brightness: 500 nits (100~500 nits Adjustable)
Contrast Ratio: 5,000:1 (According to current Hisense test environment)
Visual Viewing Angle (HxV): 150° x 140°
Brightness Uniformity: 95%
Colour Uniformity: ±0.003 Cx,Cy
Processing Depth: 14 bits
Colour Temp - Default (Adjustable): 6500 K (2,000 ~ 9,300 K)


Electrical
Power Supply Voltage: 100-240V, 50/60Hz
Average Power Consumption (W/Screen): ?720
Max Power Consumption (W/Screen): ?2100
Refresh Rate: 3,840Hz
WiFi: 2.4G & 5G
Bluetooth: 5.0
Input:
HDMI(2.0) IN x3 (include 1 interal)
USB2.0 x1
USB3.0 / Type-C (not full function) x1
RS-232 x1 (internal)
LAN x1
Output:
SPDIF x1
Audio Out x1

Operation Conditions
Operating Temp/Humidity: 0 - 40°C / 10% - 90%RH (no frost)
Storage Temp/Humidity: -20 - 40°C / 10% - 65%RH (no frost)
Expected LED Lifetime (typ): 100,000 Hrs

Speaker
Built-in: 10W x 6
External: 3.5mm Audio external sound system connector (prior to the built-in sound system connector)


System
OS: Android 9.0
CPU: CA73*4 1.3GHz
GPU: G52 MC1
DDR: 3GB
ROM: 64GB
Language: Chinese / English (Default) / French / German / Spanish / Italian / Polish / Arabic / Russian


Package Solution 1 (Flight Case)
Packing Method: Flight case for Cabinets / Modules / Wall Bracket and Accessory
Packaging Dimensions (WxHxD): 1120 x 2100 x 768mm 44.09 x 82.67 x 30.23 inch
Net / Gross Weight (w Wall Bracket): 162kg / 230kg // 357.14lbs / 526.90lbs


Mobile Cart (Optional)
Packaging Method: Wooden Box (For Mobile Cart) (Option)
Packaging Dimensions (WxHxD): 2551 x 192 x 1037mm / 100.43 x 7.55 x 40.82inch
Net / Gross Weight: 57kg / 110kg // 125.66lbs / 242.50lbs

Miscellaneous
Curve Support (-:concave +:convex): Flat, Flat
Controller: Embedded
Standard Accessory:
User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket
Optional Accessory:
Mobile Cart (LGR00401A)
Hisense Dongle (HT002)*
Camera (HMC03-1080P, 25M)*
OPS (S02BDs&AA21E/5A811E)

Available Regions
EU
APAC
SA
USA

*Not available in the US market
