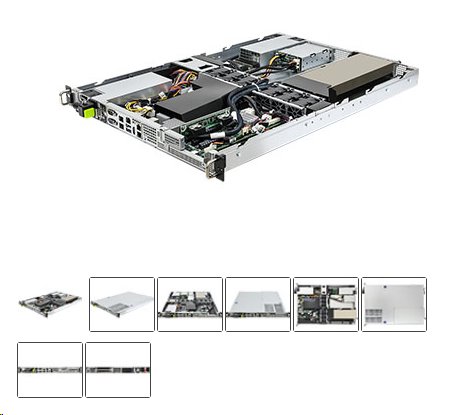

ASRock Rack 1U server AM4 X570 4xDDR4 ECC PCIe4.0 1x16x 2x10GB + 2x1GB LAN IPMI








  • ASRock Rack 1U server AM4 X570 4xDDR4 ECC PCIe4.0 1x16x 2x10GB + 2x1GB LAN IPMI










Kód:
AG1U1GX5702L2T
P/N:
1U1G-X570/2L2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

Specifications

 System
Form Factor 1U
Dimensions 660.4 x 438.0 x 43.5 mm (26'' x 17.2'' x 1.7'')
Support Motherboard X570D4U-2L2T
 Front Panel
Buttons Reset, Power w/ LED, UID w/ LED
LEDs System Fail, LAN1, LAN2
I/O Ports 2 RJ45(10GbE), 2 RJ45 (1GbE)
2 Type A (USB3.2 Gen1)
1 DB15 (VGA), 1 HDMI
1 DB9 (COM)
IPMI LAN 1 dedicated IPMI
 External Drive Bay / Storage
Rear Side 2 SFF 2.5”(SATA 6Gb/s)
Internal Side 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH]
*Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
 Power Supply
Type 1+1 CRPS
Output Watts 800W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 50/60Hz
 System Fan
Fan 6 single-rotor 40x56 mm fans
 Processor System
CPU Supports:
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors
Socket AM4 PGA 1331
Chipset AMD X570
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type Supports DDR4 288-pin ECC*/non-ECC UDIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM up to 32GB per DIMM
Max. DIMM Frequency up to 3200 MHz*
* AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz
Voltage 1.2V
 PCIe Expansion Slots
PCIe x 16 Supports 1 FH dual-slot PCIe4.0 x16* via 1U4G_ROME_R_RDV
*Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
*Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics
 Ethernet
Additional Ethernet Controller Intel® X550-AT2: 2 RJ45 (10GbE)
2 Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2500
Dedicated IPMI LAN 1 RJ45 via Realtek RTL8211E
 Rear I/O
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
 System BIOS
BIOS Type 256Mb AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
 Environment
Temperature Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Humidity Non-operating humidity: 20% ~ 90% (non-condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=1U1G-X570/2L2T#Specifications
