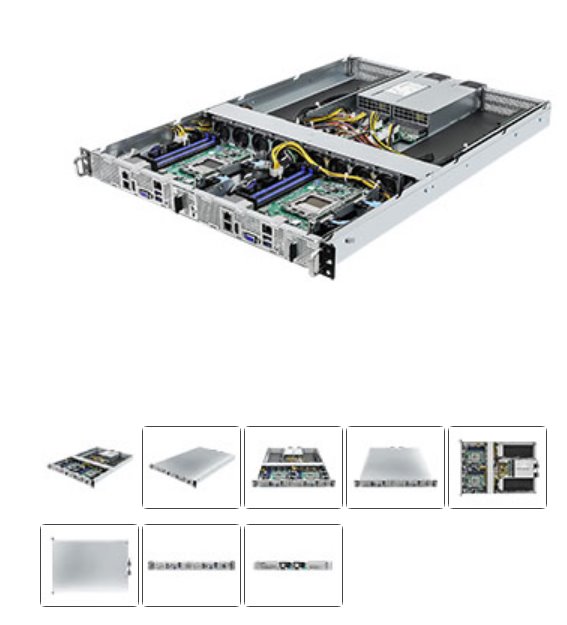

ASRock Rack 1U server AM5 4xDDR5 PCIe5,0 1x16x 1xM.2 2x1GB Lan 80+Platinum 2x1600W








  • ASRock Rack 1U server AM5 4xDDR5 PCIe5,0 1x16x 1xM.2 2x1GB Lan 80+Platinum 2x1600W










Kód:
AG1U2N2GAM52T
P/N:
1U2N2G-AM5/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

 System
Form Factor 1U Rackmount
Dimensions 650 x 438 x 43.5 mm (25.6'' x 17.2'' x 1.7'')
Support MB AM5D4ID-2T/BCM
 Front Panel
Buttons UID w/LED, Power w/LED
LEDs System Fail
I/O Ports 2 RJ45 (10GbE) by Broadcom BCM57416, 2 Type-A (USB3.2 Gen1), 1 DB15 (VGA), 1 HDMI
IPMI LAN 1 dedicated IPMI
 External Drive Bay / Storage
Internal Side 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
 Power Supply
Type 1+1 CRPS
Output Watts 1000W @100-127Vac input / 1600W @200-240Vac input
Efficiency 80-PLUS Platinum
AC Input Low-line: 100-127Vac, 60/50Hz; High-line: 200-240Vac, 60/50Hz
 System Fan
Fan 8 PWM Hot-swap 40x56 mm fans
 Processor System
CPU Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power Up to 120W
Chipset KNOLL3 X300
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 48GB
Max. DIMM Frequency 5600 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHFL dual-slot PCIe5.0 x16 or 2 FHFL single-slot PCIe5.0 x8

Support passive-cooling GPU card dimensions (L x W x H):
266.7 x 111.15 x 39.04 mm (GPU power connector on the east edge)

*Please contact ASRock Rack for suggested active-cooling GPU card dimensions or further details.
 Ethernet
Additional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA)
AMD Processors with Graphics:
1 HDMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3
 Hardware Monitor
Temperature CPU, DDR, MB, Card Side
Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage 3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V
 Supported OS
OS Microsoft® Windows:
Windows® 10 (64 bit)
Windows® 11 (64 bit)

Linux:
UBuntu 22.04.2 (64 bit)

* On the Windows® system, Raid mode supports UEFI Boot only.
* The Linux system doesn't support Raid Mode.
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=1U2N2G-AM5/2T#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  1U

Procesor
Procesor:  AMD

Pevný disk
Typ řadiče:  SATA

Paměť
Typ paměti:  DDR5
Počet paměťových slotů:  4
