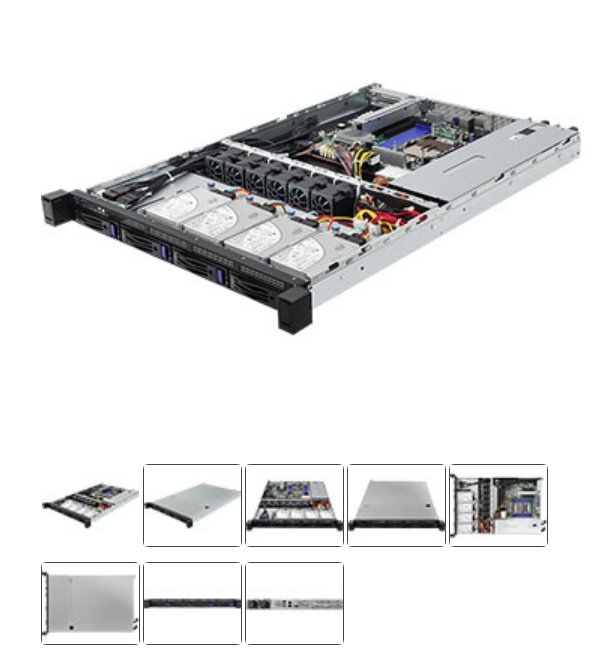

ASRock Rack 1U server Intel (LGA 4677) 8xDDR5 PCIe5,0 1x16x 1xM,2 4x3,5"HS 4x2,5"Fix 2x10GB Lan 80+Platinum 2x750W Slim








  • ASRock Rack 1U server Intel (LGA 4677) 8xDDR5 PCIe5,0 1x16x 1xM,2 4x3,5"HS 4x2,5"Fix 2x10GB Lan 80+Platinum 2x750W Slim










Kód:
AG1U4LEGS2T
P/N:
1U4L-EGS/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 1U Rackmount
Dimensions 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB SPC741D8UD-2T/X550
 Front Panel
Buttons Power w/ LED, UID w/ LED, System Reset
LEDs HDD Activity, LAN 1/2 Activity, System Event
I/O Ports 2 Type-A (USB2.0)
 External Drive Bay / Storage
Front Side Drive Bay 4 Hot-swap 3.5" SATA drive bays
Front Side Backplane 4-ports SATA passive backplane
Internal Side 4 fixed 2.5" SATA drive bays
1 M-key (PCIe3.0 x4); support 2280 form factor
 Power Supply
Type 1+1 Slim PSU
Output Watts 750W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 60/50Hz
 System Fan
Fan 6 PWM Hot-swap 40x56 mm fans
 Processor System
CPU Supports 5th and 4th Gen Intel® Xeon® Scalable processors
Socket Single Socket E (LGA 4677)
Thermal Design Power max. up to 300W
Chipset Intel® C741
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB
RDIMM-3DS: 256GB
Max. DIMM Frequency 5600 MT/s on 5th Gen Intel® Xeon® Scalable Processors
4800 MT/s on 4th Gen Intel® Xeon® Scalable Processors
*Memory speed and capacity support varies by CPU SKU
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHHL PCIe5.0 x16 via RB1UX16R_G5
 Ethernet
Additional GbE Controller 2 RJ45 (10GbE) by Intel® X550-AT2
 Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE), 1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, PCH, MB, Card side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=1U4L-EGS/2T#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  1U

Procesor
Procesor:  Intel

Pevný disk
Typ řadiče:  SAS
Rozměr disků:  2,5" a 3,5"

Paměť
Typ paměti:  DDR5
Počet paměťových slotů:  8
