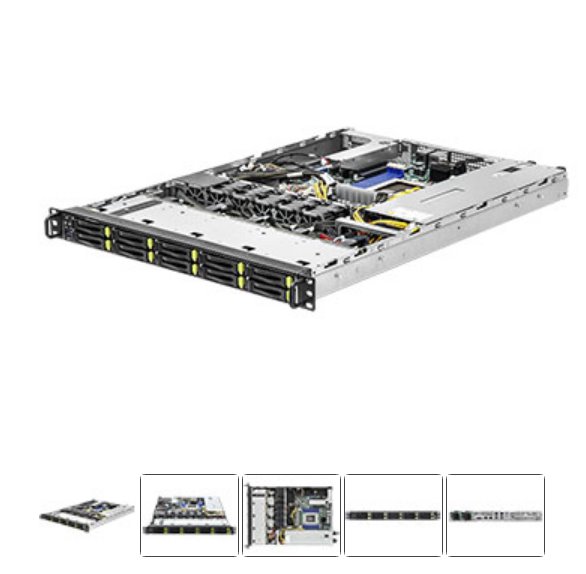

ASRock Rack 1U server Intel (LGA 4926) 8xDDR4 PCIe4,0 1x16x 2xM,2 10x 2,5"HS NVMe 2x10GB 1x1GB Lan 80+Platinum 2x650W








  • ASRock Rack 1U server Intel (LGA 4926) 8xDDR4 PCIe4,0 1x16x 2xM,2 10x 2,5"HS NVMe 2x10GB 1x1GB Lan 80+Platinum 2x650W










Kód:
AG1U10EALTRA1L2T
P/N:
1U10E-ALTRA/1L2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

 System
Form Factor 1U Rackmount
Dimensions 625.0 x 430.0 x 43.5 mm (24.6'' x 16.9'' x 1.7'')
Support MB ALTRAD8UD-1L2T
 Front Panel
Buttons Power, System reset button
LEDs LAN Activity, HDD Activity, Power
I/O Ports 1 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 10 Hot-swap NVMe (PCIe4.0 x4) drive bays
Front Side Backplane 10-port NVMe passive backplane (1U10E-BPB_G4)
Internal Side 2 M-key (PCIe4.0 x4); support 2280/2230 form factor
 Power Supply
Type 1+1 Slim PSU
Output Watts 650W @ 100-240Vac input
Efficiency 80-PLUS Platinum
AC Input AC 100-240V/9A, 50-60Hz
 System Fan
Fan 5 PWM easy-swap 40x56 mm fans
 Processor System
CPU Supports Ampere Altra Max/Ampere Altra processors
Socket Single Socket (LGA 4926)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR4 288-pin RDIMM, LRDIMM
Max. Capacity per DIMM 256GB
Max. DIMM Frequency 3200 MHz
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHFL single-slot PCIe4.0 x16* via RB1UX16_G4

*Supports PCIe4.0 x8 when using Ampere Altra processors
 Ethernet
Additional GbE Controller Intel® X550: 2 RJ45 (10GbE)
Intel® i210: 1 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 Realtek RTL8211E for dedicated management GLAN
 Graphics
Controller ASPEED AST2500
VRAM DDR4 512MB
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 RJ45 (1GbE)
1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.2, SMBIOS 3.4.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature SOC, MB Temperature sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 12V, 5V, 3V3, 5VSB, 0V8_VDDC_SOC, BAT, 0V75_PCP_CPU, 1V8_PCP, 1V2_VDDQ0123, 1V2_VDDQ4567, 0V6_VTT0123, 0V6_VTT4567, 3V3_SOC, 1V8_VDDH, 1V5_VDDH, 0V85_VDDC_RCA
 Supported OS
OS RHEL 8.5 aarch64
RHEL 9.2 aarch64
CentOS-Stream 8 aarch64
CentOS-Stream 9 aarch64
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=1U10E-ALTRA/1L2T#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  1U

Paměť
Typ paměti:  DDR4
