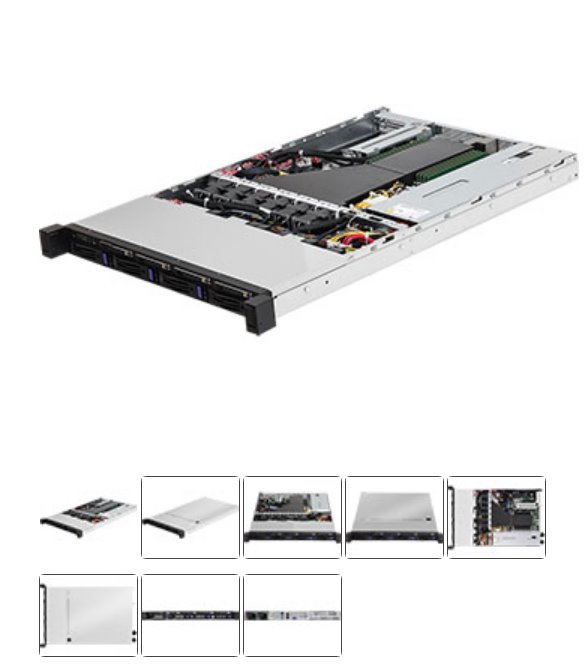

ASRock Rack 1U server P+Intel (LGA 4189) 8xDDR4 PCIe4,0 1x16x 1xM,2 4x2,5"HS 4x2,5"HS NVMe 2x10GB Lan 80+Platinum 2x750W








  • ASRock Rack 1U server P+Intel (LGA 4189) 8xDDR4 PCIe4,0 1x16x 1xM,2 4x2,5"HS 4x2,5"HS NVMe 2x10GB Lan 80+Platinum 2x750W










Kód:
AG1U4L4EICX2T
P/N:
1U4L4E-ICX/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 1U Rackmount
Dimensions 676.5 X 438 X 43.4 mm
Support MB SPC621D8U-2T
 Front Panel
Buttons Power button w/ LED, ID button w/ LED, System reset
LEDs HDD Activity, LAN 1/2, System Event
 External Drive Bay / Storage
Front Side Drive Bay 4 Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays
4 Hot-swap 3.5" SATA drive bays
Internal Side 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280 form factor
 Power Supply
Type 1+1 Slim PSU
Output Watts 750W
Efficiency 80-PLUS Platinum
 System Fan
Fan 6 40x56 mm fans
 Processor System
CPU Supports 3rd Gen Intel® Xeon® Scalable processors
Socket Single Socket P+ (LGA 4189)
Chipset Intel® C621A
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series
Max. Capacity per DIMM RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
Max. DIMM Frequency max. 3200MHz
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHHL PCIe4.0 x16 via RB1UX16_G4
 Ethernet
Additional GbE Controller Intel® X710-AT2: 2 RJ45 (10 GbE)
 Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
 Graphics
Controller ASPEED AST2500
VRAM DDR4 16MB
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE), 1 dedicated IPMI
 System BIOS
BIOS Type AMI 256 Mb SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 4.0, SMBIOS 3.3, Plug and Play (PnP)
 Hardware Monitor
Temperature CPU, PCH, MB, Card side Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage CPU1_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH 3.3V,5V,12V,3.3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity - Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=1U4L4E-ICX/2T#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  1U

Procesor
Procesor:  Intel

Pevný disk
Typ řadiče:  SAS
Rozměr disků:  2,5"

Paměť
Typ paměti:  DDR4
Počet paměťových slotů:  8
