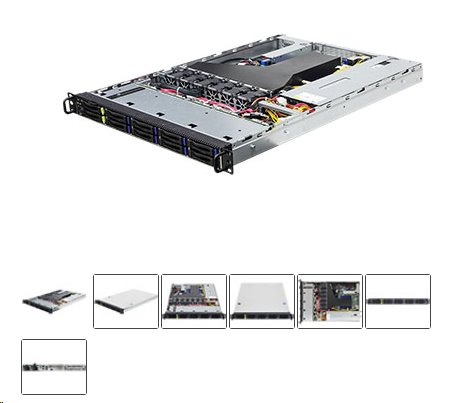

ASRock Rack 1U server SP3 8xDDR4 ECC R PCIe4.0 1x16x 2x2,5"NVMe HS 8x2,5"HS 2x10GB LAN 80+ Gold 2x750W








  • ASRock Rack 1U server SP3 8xDDR4 ECC R PCIe4.0 1x16x 2x2,5"NVMe HS 8x2,5"HS 2x10GB LAN 80+ Gold 2x750W










Kód:
AG1U8S2EROME2T
P/N:
1U8S2E-ROME/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

Specifications

 System
Form Factor 1U Rackmount
Dimensions 625 x 430 x 43.5 mm (24.6'' x 16.9'' x 1.7'')
Support Motherboard ROMED8U-2T
 Front Panel
Buttons Power Switch, System reset, NMI button
LEDs Power status, LAN1/LAN2 LED
I/O Ports 1 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 2 hot-swap 2.5" NVMe/SATA drive bays
8 hot-swap 2.5" SATA drive bays
Internal Side 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 2280 form factor
 Power Supply
Type 1+1 Slim PSU
Output Watts 750W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 50-60Hz
 System Fan
Fan 6 PWM hot-swap 40 x 56 mm fans
 Processor System
CPU Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
Socket Single Socket SP3 (LGA4094)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
Max. Capacity per DIMM RDIMM: up to 64GB
LRDIMM: up to 128GB
RDIMM/LRDIMM-3DS: up to 256GB
Max. DIMM Frequency RDIMM/ LRDIMM: max. 3200MHz
Voltage 1.2V
 PCIe Expansion Slots
PCIe x 16 Rear: 1 FHHL PCIe4.0 x16 via RB1UX16_G4
 Ethernet
Additional Ethernet Controller 1 Intel® X710-AT2: 2 RJ45 (10GbE)
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
 System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, Memory, MB, Card side Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3v/5v/12v, +BAT, 3VSB, 5VSB
 Environment
Temperature Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Humidity Non-operating humidity: 20% ~ 90% (non-condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?model=1U8S2E-ROME/2T#Specifications
