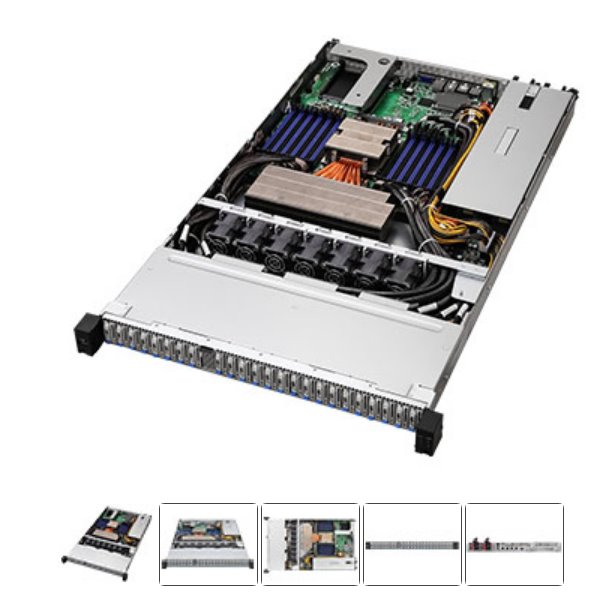

ASRock Rack 1U server SP5 24xDDR5 PCIe5,0 1x16x 24xE1.S 1xOCP 2x10GB 2x1GB Lan 80+Platinum 2x1600W








  • ASRock Rack 1U server SP5 24xDDR5 PCIe5,0 1x16x 24xE1.S 1xOCP 2x10GB 2x1GB Lan 80+Platinum 2x1600W










Kód:
AG1U24E1SGENOA2L2T
P/N:
1U24E1S-GENOA/2L2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 1U Rackmount
Dimensions 776.5 x 438 x 43.5mm (30.6'' x 17.2'' x 1.7'')
Support MB GENOAD24QM32-2L2T/BCM
 Front Panel
Buttons Power on/off, Reset, ID
LEDs Power LED, LAN 1/2 LED, System Event LED, ID LED
I/O Ports 1 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 24 Hot-swap E1.S (PCIe5.0 x4) drive bays, supports 9.5mm/15mm width
Front Side Backplane 3 x 8-port E1.S passive backplane (E1S8_BPB2_G5)
 Power Supply
Type 1+1 Hot-swap Slim RPSU
Output Watts 1600W @100-240Vac input
Efficiency 80-PLUS Platinum
AC Input 100-240Vac, 50/60Hz
 System Fan
Fan 7 PWM Hot-swap 40x56 mm fans
 Processor System
CPU Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

*A BIOS update is required to support AMD EPYC™ 9005 series processors
Socket 1 Socket SP5 (LGA 6096)
Thermal Design Power Up to 400W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 24 DIMM slots (2DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency RDIMM: 4800 MHz (1DPC)
RDIMM 1R: 4000 MHz (2DPC)
RDIMM 2R: 3600 MHz (2DPC)
RDIMM-3DS: 4800 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHHL PCIe5.0 x16
 TPM
TPM support 1 (13-pin, SPI)
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, Card side, TR1 Temperature sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VDDCR_CPU,VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
