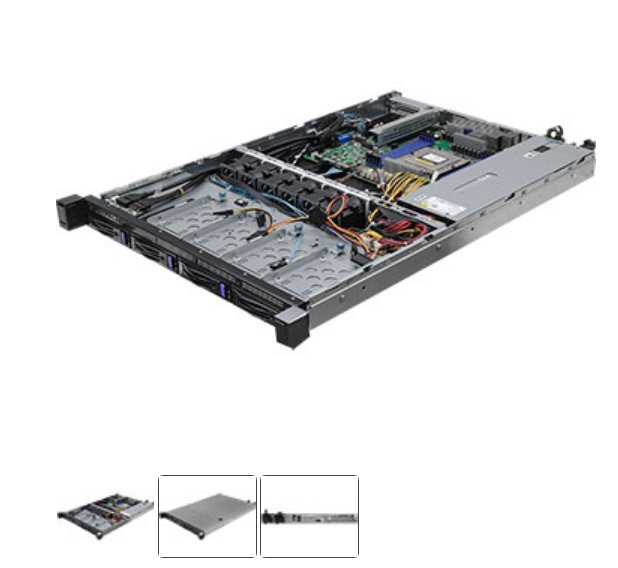

ASRock Rack 1U server SP5 8xDDR5 PCIe5,0 1y16x 2xM,2 4x3,5"HS 4x2,5"Fix 2x10GB Lan 80+Platinum 2x750W








  • ASRock Rack 1U server SP5 8xDDR5 PCIe5,0 1y16x 2xM,2 4x3,5"HS 4x2,5"Fix 2x10GB Lan 80+Platinum 2x750W










Kód:
AG1U4LGENOA2T
P/N:
1U4L-GENOA/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 1U Rackmount
Dimensions 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB GENOAD8UD-2T/X550
 Front Panel
Buttons Power button w/ LED, ID button w/ LED, System reset
LEDs HDD Activity, LAN 1/2, System Event
I/O Ports 2 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 4 hot-swap 3.5" SATA drive bays
Front Side Backplane 4-port SATA passive backplane
Internal Side 4 fixed 2.5" SATA drive bays
2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
 Power Supply
Type 1+1 Slim PSU
Output Watts 750W
Efficiency 80-PLUS Platinum
 System Fan
Fan 6 PWM Easy-swap 40x56 mm fans
 Processor System
CPU Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

*A BIOS update is required to support AMD EPYC™ 9005 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 300W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 4800 MHz
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear: 1 FHHL PCIe5.0 x16 via RB1UX16R_G5 (Up to 75W)
 Ethernet
Additional GbE Controller Intel® X550-AT2: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, TR1 Temperature sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=1U4L-GENOA/2T#Specifications
