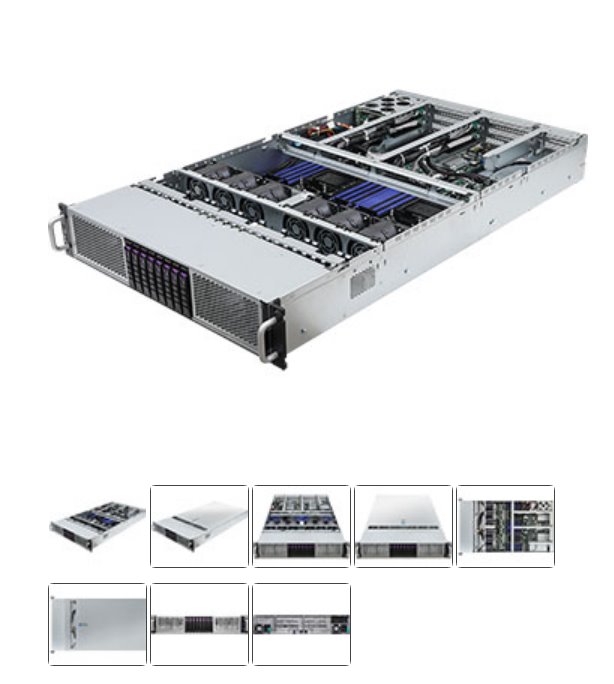

ASRock Rack 2U server 2xE Intel (LGA 4677) 32xDDR5 PCIe5,0 2x16x 2xM,2 8x2,5"HS NVMe 2x2,5"HS 2xOCP 80+Platinum 2x2700W








  • ASRock Rack 2U server 2xE Intel (LGA 4677) 32xDDR5 PCIe5,0 2x16x 2xM,2 8x2,5"HS NVMe 2x2,5"HS 2xOCP 80+Platinum 2x2700W










Kód:
AG2U4G8EEGS2
P/N:
2U4G8E-EGS2
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 2U Rackmount
Dimensions 800 x 438 x 87.3mm (31'' x 17.2'' x 3.44'')
Support MB SP2C741D32TM3
 Front Panel
Buttons Power w/ LED, ID w/ LED, System Reset
LEDs System Fault
I/O Ports 2 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 8 Hot-swap 2.5" NVMe (PCIe5.0) drive bays
Front Side Backplane one 8-ports NVMe passive backplane
Rear Side 2 Hot-swap 2.5'' SATA drive bays
Rear Side Backplane one 2-ports SATA passive backplane
Internal Side 2 M-key (PCIe4.0 x4), support 22110/2280 form factor
 Power Supply
Type 1+1 CRPS
Output Watts 2700W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 60/50Hz
 System Fan
Fan 6 PWM fixed 60x56 mm fans
 Processor System
CPU Supports 5th and 4th Gen Intel® Xeon® Scalable processors
Socket 1+1 Socket E (LGA 4677)
Thermal Design Power max. up to 270W
Chipset Intel® C741
 System Memory
Supported DIMM Quantity 16+16 DIMM slots (2DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB
RDIMM-3DS: 256GB
Max. DIMM Frequency 5600 MT/s (1DPC) / 4400 MT/s (2DPC) on 5th Gen Intel® Xeon® Scalable Processors
4800 MT/s (1DPC) / 4400 MT/s (2DPC) on 4th Gen Intel® Xeon® Scalable Processors
*Memory speed and capacity support varies by CPU SKU
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 4 FHFL single-slot PCIE5.0 x16 or 2 FHFL dual-slot PCIE5.0 x16
 Ethernet
OCP slot 2 OCP NIC 3.0 (PCIe5.0 x16)
 Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 Mini-DP (DP/Mini-DP), 1 DB15 (VGA)
Serial Port 1 RJ45 (COM)
USB 3.2 Gen1 Port 2 Type A (USB3.2 Gen1)
RJ45 1 RJ45 (COM), 1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, PCH, MB, Card Side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=2U4G8E-EGS2#Specifications
