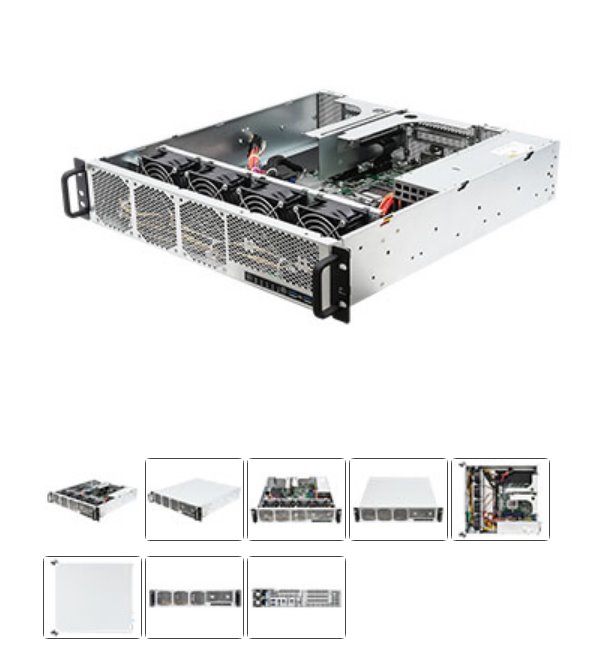

ASRock Rack 2U server AM5 4xDDR5 PCIe5.0 1x16x,PCIe4 1x4x 2xM.2 2x1GB Lan 80+Platinum 2x1200W








  • ASRock Rack 2U server AM5 4xDDR5 PCIe5.0 1x16x,PCIe4 1x4x 2xM.2 2x1GB Lan 80+Platinum 2x1200W










Kód:
AG2U1GB650
P/N:
2U1G-B650
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 2U Rackmount
Dimensions 477.7 x 430.4 x 88 mm (18.8'' x 16.9'' x 3.5'')
Support MB B650D4U/2U1G
 Front Panel
Buttons Power button w/ LED, System Reset button
LEDs System Fail LED, LAN1/LAN2 Activity, Power Status LED
I/O Ports 2 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Internal Side 2 optional fixed 2.5" drive bays
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
 Power Supply
Type 1+1 Hot-swap CRPS
Output Watts 1000W @ 100-127Vac input / 1200W @ 200-240Vac input
Efficiency 80-PLUS Platinum
AC Input AC 100-127V/12A, 50-60Hz; AC 200-240V/7.5A, 50-60Hz
 System Fan
Fan 4 PWM easy-swap 80x38 mm fans
 Processor System
CPU Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power Up to 120W
Chipset AMD B650E
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 48GB
Max. DIMM Frequency 5600 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 1 FHFL triple-slot PCIe5.0 x16 via RB2UX16L_G5_RDV

Support GPU card dimensions (L x W x H):
335 x 131 x 62 mm (GPU power connector on the south edge)
312 x 154.5 x 62 mm (GPU power connector on the east edge)
PCIe x 4 1 FHHL PCIe4.0 x4 via riser cable
 Ethernet
Additional GbE Controller Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE)
1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
 Hardware Monitor
Temperature CPU, DDR, MB, Card Side, Chipset, M.2 slot
Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
 Supported OS
OS AMD Ryzen CPU:
Microsoft® Windows:
- Windows® 10 (64 bit)
- Windows® 11 (64 bit)

Linux:
- RedHat Enterprise Linux Server 8.7 (64bit)
- CentOs 8.5 ( 64 bit)
- SUSE SLES 15.4(64 bit) / 15.2(64 bit)
- UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)

Hypervisor:
- VMWare® ESXi 8.0 / 7.0 U3g

AMD EPYC 4004 CPU:
Microsoft® Windows:
- Windows® Server2022 (64 bit)
* Bios setting: Advanced > Chipset Configuration > Server WHQL Support setting Enable

Linux:
- RedHat Enterprise Linux Server 8.9 ( 64 bit) / 9.3 (64bit) / 9.4 (64bit)
- SUSE SLES 15.5(64 bit)
- UBuntu 20.04.6 (64 bit) / 22.04.4 (64 bit)

* The Linux system doesn't support Raid Mode.
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=2U1G-B650#Specifications
