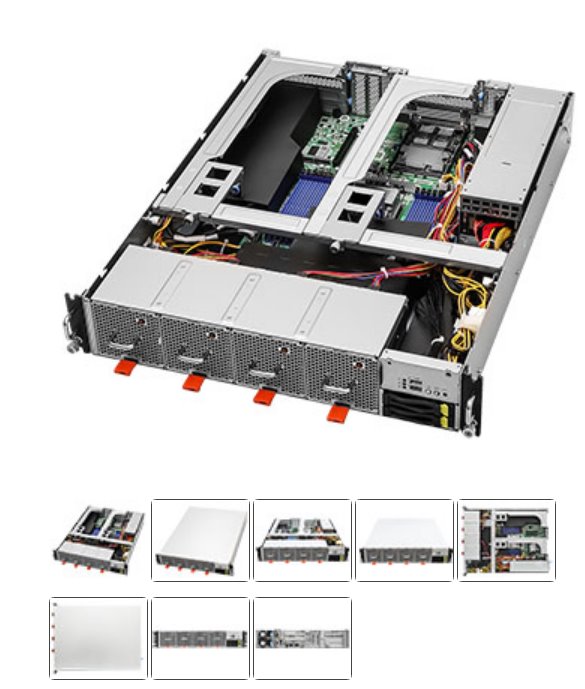

ASRock Rack 2U server SP5 12xDDR5 PCIe5,0 4x16x GPU 2xM,2 2x2,5"HS NVMe 1xOCP 80+PL/TI 2x2KW








  • ASRock Rack 2U server SP5 12xDDR5 PCIe5,0 4x16x GPU 2xM,2 2x2,5"HS NVMe 1xOCP 80+PL/TI 2x2KW










Kód:
AG2U2GGENOA
P/N:
2U2G-GENOA
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 2U Rackmount
Dimensions 580 x 438 x 87 mm (22.8'' x 17.2'' x 3.4'')
Support MB GENOAD12M3/T
 Front Panel
Buttons Power button w/ LED, ID button w/ LED, System reset
LEDs HDD Activity, LAN1/2 (Not support), System Event
I/O Ports 2 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Front Side Drive Bay 2 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
Front Side Backplane 2-port NVMe passive backplane (1U2G_U2BP_G4)
Internal Side 2 M-key (PCIe5.0 x4 or SATA 6Gb/s), supports 22110/2280/2260 form factor
 Power Supply
Type 1+1 Hot-swap CRPS
Output Watts Low-line: 100-127Vac, 50/60Hz; High-line: 200-240Vac, 50/60Hz
Efficiency 80-PLUS Platinum/Titanium
AC Input 1000W @100-127Vac input / 2000W @200-240Vac input
 System Fan
Front 4 PWM Hot-swap 80x56 mm fans,
Middle 1 PWM fixed 40x28 mm fan
 Processor System
GPU Supports 2 GPU and accelerator cards of up to 350W TDP each
CPU Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

*A BIOS update is required to support AMD EPYC™ 9005 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 360W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 12 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 4800 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 2 FHFL dual-slot PCIe5.0 x16
2 HHHL single-slot PCIe5.0 x16
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB
 Rear I/O
UID Button/LED 1 UID button
Video Port 1 DB15 (VGA)
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, Memory Temperature Sensing
Fan "CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control"
Voltage VOLT_3VSB, VOLT_5VSB, VOLT_VCORE0, VOLT_VCORE1, VOLT_P0_VSOC, VOLT_VDD_11, VOLT_VDDIO, VOLT_VDD_33, VOLT_VDD_18, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=2U2G-GENOA#Specifications
