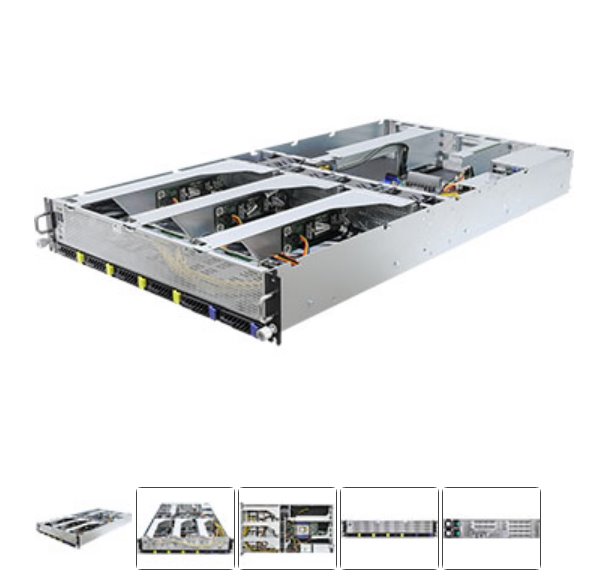

ASRock Rack 2U server SP5 8xDDR5 PCIe5,0 2x16x 1x8x 4x2,5"HS NVMe 2x2,5"HS 1xOCP 80+Platinum, 2x2700W








  • ASRock Rack 2U server SP5 8xDDR5 PCIe5,0 2x16x 1x8x 4x2,5"HS NVMe 2x2,5"HS 1xOCP 80+Platinum, 2x2700W










Kód:
AG2U4GGENOAM3
P/N:
2U4G-GENOA/M3
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 2U Rackmount
Dimensions 850 x 438 x 87.5 mm (33.5'' x 17.2'' x 3.4'')
Support MB GENOAD8HM3
 Front Panel
Buttons Power w/ LED, ID w/ LED, System Reset
LEDs System Fault
I/O Ports 2 Type-A (USB3.0)
 External Drive Bay / Storage
Front Side Drive Bay 4 x 2.5" NVMe + 2 x 2.5"SATA Hot-swap drive bays
Front Side Backplane 6-port NVMe/SATA passive backplane
Internal Side 2 M-key (PCIe5.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor
 Power Supply
Type 1+1 CRPS
Output Watts 1200W @ 100-127Vac input / 2700W @ 200-240Vac input
Efficiency 80-PLUS Platinum
AC Input Low-line: 100-127Vrms, 47/63Hz ; High-line: 200-240Vrms, 47/63Hz
 System Fan
Fan 3 x 80 x 38 mm + 1 x 80 x 80 mm
 Processor System
CPU Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

*A BIOS update is required to support AMD EPYC™ 9005 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 400W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 4800 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 4 dual-slot PCIe5.0 x16 (FHFL)
1 single-slot PCIe5.0 x16 (FHHL)
PCIe x 8 1 PCIe5.0 x8 (FHFL)
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 mini DIsplayPort
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 1 (IPMI) Lan port (RJ45)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, Card side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, +BAT, +12V, +3VSB, +5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=2U4G-GENOA/M3#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  2U

Procesor
Procesor:  AMD

Pevný disk
Typ řadiče:  SATA
Rozměr disků:  2,5"

Paměť
Typ paměti:  DDR5
Počet paměťových slotů:  8
