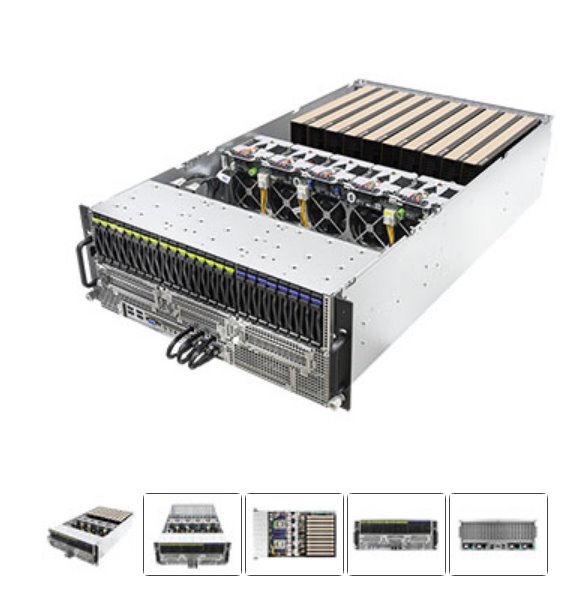

ASRock Rack 4U server 2xSP5 24xDDR5 PCIe 14x16x 2x8x 2xM,2 16x2,5"HS NVMe 24x2,5"HS OCP 2x1GB 80+Pl 4x2KW








  • ASRock Rack 4U server 2xSP5 24xDDR5 PCIe 14x16x 2x8x 2xM,2 16x2,5"HS NVMe 24x2,5"HS OCP 2x1GB 80+Pl 4x2KW










Kód:
AG4U10GGENOA2
P/N:
4U10G-GENOA2
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 4U Rackmount
Dimensions 786 x 438 x 176.5 mm (30.9'' x 17.2'' x 6.9'')
Support MB GENOA2D24G-2L+
 Front Panel
Buttons Power button w/ LED, Reset button, NMI button, UID button
LEDs System fault LED, HDD activity LED
I/O Ports 2 RJ45 (1GbE) by Intel i350, shares with Rear IO
1 dedicated IPMI, shares with Rear IO
4 Type-A (USB3.2 Gen1)
1 DB15 (VGA)
 External Drive Bay / Storage
Front Side Drive Bay 16 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
or 24 Hot-swap 2.5" SATA/SAS* drive bays
*Additional RAID/HBA card required to support the 24 x 2.5" SATA/SAS drive bays
Front Side Backplane 24-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards
Internal Side 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0]
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1]
 Power Supply
Type 3+1 CRPS
Output Watts 1000W @ 100-127Vac input / 2000W @ 200-240Vac input
Efficiency 80-PLUS Platinum
AC Input Low-line: 100-127Vrms, 47/63Hz ; High-line: 200-240Vrms, 47/63Hz
 System Fan
Fan 5 Middle Hot-swap 80x80 mm fans
 Processor System
CPU Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

*A BIOS update is required to support AMD EPYC™ 9005 series processors
Socket Dual Socket SP5 (LGA 6096)
Thermal Design Power Up to 400W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 12+12 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 4800 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear:
10 FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch)
1 FHFL single-slot PCIe5.0 x16 (CPU direct link)
Front:
2 FHHL PCIe5.0 x16
PCIe x 8 Rear:
2 FHFL single-slot PCIe5.0 x8, shared space with adjacent dual-slot (with PEX89104 PCIe Switch)
 Ethernet
Additional GbE Controller Intel® i350: 2 RJ45 (1GbE)
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB
 Rear I/O
UID Button/LED 1 UID button
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE) by Intel i350, shares with Front Panel
1 dedicated IPMI, shares with Front Panel
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, Card side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=4U10G-GENOA2#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  4U

Procesor
Procesor:  AMD

Pevný disk
Typ řadiče:  SATA
Rozměr disků:  2,5"

Paměť
Typ paměti:  DDR5
Počet paměťových slotů:  24
