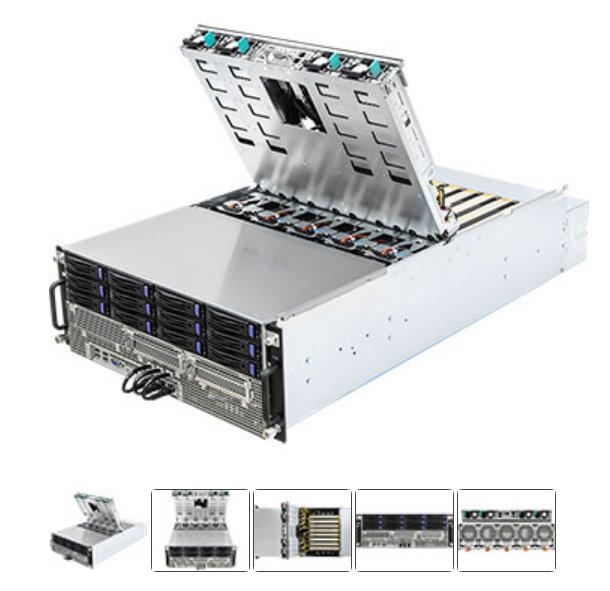

ASRock Rack 4U server Intel (LGA 4189) 32xDDR4 PCIe4,0 8x16x 12x3,5"HS 1xOCP 2x10GB Lan 80+Platinum 4x1600W








  • ASRock Rack 4U server Intel (LGA 4189) 32xDDR4 PCIe4,0 8x16x 12x3,5"HS 1xOCP 2x10GB Lan 80+Platinum 4x1600W










Kód:
AG4U8GICX22T
P/N:
4U8G-ICX2/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

 System
Form Factor 4U Rackmount
Dimensions 438mmx 845mmx 176.5mm (w/ fans)
Support MB SP2C621D32GM-2T
 Front Panel
Buttons Power button w/ LED
Reset button
NMI button
UID button w/ LED
LEDs System fault LED
HDD activity LED
I/O Ports 1 DB15 (VGA)
4 USB Type-A (USB3.2 Gen1)
2 RJ45 (10GbE) by Intel® X710-AT2, shares with Rear Panel I/O
IPMI LAN 1 dedicated IPMI LAN, shares with Rear Panel I/O
 External Drive Bay / Storage
Front Side Drive Bay 12 Hot-swap 3.5" drive bays,
supports 2 SATA drives
supports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card
Front Side Backplane three 4-port NVMe*/SAS/SATA passive backplanes
Internal Side 1 M-key (PCIe3.0 x4/SATA) supports 22110/2280 form factor
 Power Supply
Type 3+1 CRPS
Output Watts 1600W
Efficiency 80-PLUS Platinum
AC Input Lowline: 100-127V, Highline: 200-240V
 System Fan
Fan 5 Middle Hot-swap 80x80mm fans, 5 Rear Hot-swap 80x38mm fans
Fail LED Abnormal(DC on): LED ON (Solid Red)
Normal: LED OFF
 Processor System
CPU Support Dual 3rd Gen Intel® Xeon® Scalable Processors
Socket 1+1 Socket P+ (LGA 4189)
Thermal Design Power 270W
Chipset C621A
 System Memory
Supported DIMM Quantity 16+16 DIMM slots (2DPC)
Supported Type DDR4 288-pin RDIMM, LRDIMM, NVDIMM
Max. Capacity per DIMM RDIMM: up to 64GB, LRDIMM: up to 256GB, NVDIMM: up to 32GB
Max. DIMM Frequency RDIMM/ LRDIMM: up to 3200 MHz
NVDIMM: up to 2666 MHz
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 Rear:
8 FHFL dual-slot PCIe4.0 x16 via 4UXG_SWB
PCIe x 4 Front*: 1 FHHL PCIe3.0 x4 via 4UXG_SL2P, 1 OCP3.0 PCIe3.0 x4 via 4UXG_SL2OCP3
* Front Side PCIe and OCP3 slots will be disabled when NVMe drives alternative cable configuration is enabled.
 TPM
TPM support 1 (17-pin, LPC)
 Server Management
BMC Controller ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 Realtek RTL8211E for dedicated management GLAN
 Graphics
Controller ASPEED AST2500
VRAM DDR4 4GB
 Rear I/O
UID Button/LED UID button w/ LED
Other Button/LED Power button w/ LED
Reset button
NMI button
System fault LED
HDD activity LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE) by Intel® X710-AT2, shares with front panel
1 dedicated IPMI LAN, shares with front panel
 System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU Temperature Sensing
System Temperature Sensing
Card Side Temperature Sensing
Fan Middle/ Rear Fan Tachometer
Middle/ Rear Fan Multi-Speed Control
Voltage Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity - Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=4U8G-ICX2/2T#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  4U

Paměť
Typ paměti:  DDR4
