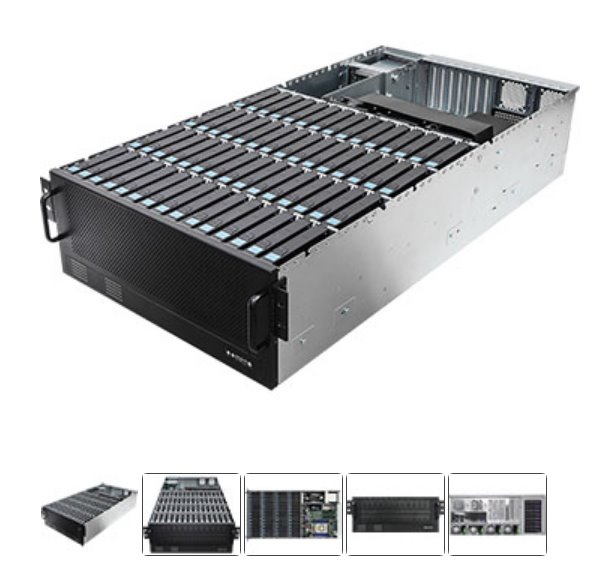

ASRock Rack 4U server SP5 8xDDR5 PCIe5,0 4x16 2xM,2 60x3,5"HS 8x2,5"HS NVMe 2x10GB Lan 80+Platinum 4x800W








  • ASRock Rack 4U server SP5 8xDDR5 PCIe5,0 4x16 2xM,2 60x3,5"HS 8x2,5"HS NVMe 2x10GB Lan 80+Platinum 4x800W










Kód:
AG4U60L8EGENOA2T
P/N:
4U60L8E-GENOA/2T
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

System
Form Factor 4U Rackmount
Dimensions 434 x 853 x 176mm (17.1'' x 33.5'' x 6.9'')
Support MB GENOAD8UD-2T/X550
 Front Panel
Buttons System Power ON/OFF, System Reset, ID
LEDs Power, HDD Activity, LAN Activity, System Fault, ID
I/O Ports 1 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Rear Side 8 Hot-swap 2.5'' NVMe (PCIe5.0 x4) drive bays* *Supports TA@30C
Rear Side Backplane 8-ports NVMe passive backplane
Internal Side 60 Hot-swap 3.5" SATA/SAS drive bays*
2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor

*Additional RAID/HBA card required to support the 60 x 3.5" SATA/SAS drives
Internal Side Backplane 2 x 30-port 12G SAS backplanes with 40-PHY expander
 Power Supply
Type 2+2 CRPS
Output Watts 800W
Efficiency 80-PLUS Platinum
AC Input 100-240V, 60/50Hz
 System Fan
Fan 4 PWM Hot-swap 80x38mm fans
 Processor System
CPU Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

*A BIOS update is required to support AMD EPYC™ 9005 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 270W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 4800 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 4 FHHL PCIe5.0 x16
 Ethernet
Additional GbE Controller Intel® X550-AT2: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB
 Rear I/O
UID Button/LED 1 UID button w/ LED
Video Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, TR1 Temperature sensing
Fan CPU/Rear/Front Fan Tachomete
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=4U60L8E-GENOA/2T#Specifications











Parametry





Základní parametry
Provedení serveru:  Standardní rackový server
Formát:  4U

Procesor
Procesor:  AMD

Pevný disk
Typ řadiče:  SATA
Rozměr disků:  2,5" a 3,5"

Paměť
Typ paměti:  DDR5
Počet paměťových slotů:  8
