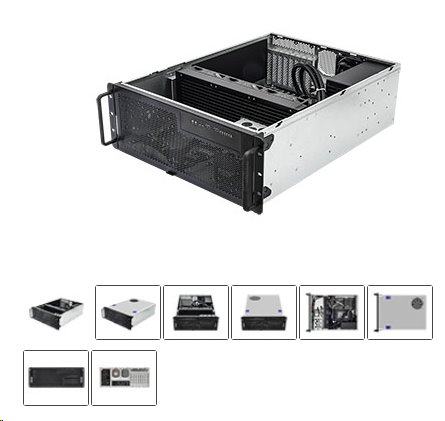

ASRock Rack 4U server TR5 PCIe5.0 4xGPU 2x10GB LAN AQUA








  • ASRock Rack 4U server TR5 PCIe5.0 4xGPU 2x10GB LAN AQUA










Kód:
AG4U4GTR52TAQUA
P/N:
4U4G-TR5/2T AQUA
Výrobce:

Asrock

Záruka:
12 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

Specifications

 System
Form Factor 4U Rackmount
Dimensions 596 x 430.4 x 174.8 mm (23.5'' x 16.9'' x 6.9'')
Support Motherboard WRX90 WS EVO (BTO)
 Front Panel
Buttons Power w/ LED, UID w/ LED, NMI
LEDs LAN Activity, HDD Activity, System Event
I/O Ports 2 Type-A (USB3.2 Gen1)
 External Drive Bay / Storage
Internal Side 4 fixed 3.5"/2.5" NVMe (PCIe4.0 x4)/SATA drive bays
1 M-key (PCIe5.0 x4), supports 22110/2280/2260 form factor
1 M-key (PCIe4.0 x4), supports 2280/2260 form factor
 Power Supply
Type 1 ATX PSU
Output Watts 1100W, 1300W @ 100-240Vac input / 1500W, 1650W @ 115-240Vac input / 2000W @ 200-240Vac input
Efficiency 80-PLUS Gold
AC Input AC 100-240V/15-6A; AC 115-240V/15-8A ; AC 200-240V/12A, 50-60Hz
 System Fan
Fan Cover: 1 PWM fixed 12x12 cm fan; Rear: 1 PWM fxied 80x25 mm fan; Radiator: 3 PWM fixed 120x25 mm fans
 Processor System
CPU Supports AMD Ryzen™ Threadripper™ PRO 9000/7000WX series processors
Socket 1 Socket sTR5 (LGA 4844)
Chipset AMD WRX90
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB
RDIMM-3DS: 256GB
Max. DIMM Frequency 5200 MHz
Voltage 1.1V
 PCIe Expansion Slots
PCIe x 16 SLOT7: PCIe5.0 x16
SLOT5: PCIe5.0 x16
SLOT4: PCIe5.0 / CXL1.1 x16
SLOT3: PCIe5.0 / CXL1.1 x16
SLOT2: PCIe5.0 / CXL1.1 x16
SLOT1: PCIe5.0 / CXL1.1 x16
PCIe x 8 SLOT6: PCIe x16 (PCIe5.0 x8)
 Ethernet
Additional Ethernet Controller Intel X710: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
Dedicated IPMI LAN 1 Realtek RTL8211F for dedicated management GLAN
 Rear I/O
Video Port 1 DisplayPort 1.1a (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
USB 3.2 Gen2 Port 2 Type-C (USB3.2 Gen2), 4 Type-A (USB3.2 Gen2)
RJ45 2 RJ45 (10GbE), 1 dedicated IPMI
Audio 1 Microphone input jack, 1 Line out jack, 1 Optical SPDIF out port
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.2, SMBIOS 3.4.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature SOC, MB Temperature sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 12V, 5V, 3V3, 5VSB, 0V8_VDDC_SOC, BAT, 0V75_PCP_CPU, 1V8_PCP, 1V2_VDDQ0123, 1V2_VDDQ4567, 0V6_VTT0123, 0V6_VTT4567, 3V3_SOC, 1V8_VDDH, 1V5_VDDH, 0V85_VDDC_RCA
 Environment
Temperature Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Humidity Non-operating humidity: 20% ~ 90% (non-condensing)


Stránky o produktu:

https://www.asrockrack.com/general/productdetail.asp?Model=4U4G-TR5/2T%20AQUA#Specificatio
