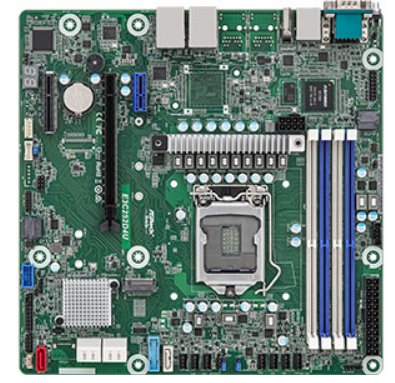

ASRock Rack E3C252D4U LGA1200 (Xeon 2300), 4xDDR4 ECC, 6x SATA, M.2(22110), 3x PCIe, 2x LAN, IPMI








  • ASRock Rack E3C252D4U LGA1200 (Xeon 2300), 4xDDR4 ECC, 6x SATA, M.2(22110), 3x PCIe, 2x LAN, IPMI










Kód:
AGE3C252D4U
P/N:
E3C252D4U
Výrobce:

Asrock

Záruka:
24 Měsíců




ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •


GPSR




Kontakt:
ASRock EU B.V.
Bijsterhuizen 11-11, 6546AR, Nijmegen, the Netherlands
sales@asrock.nl
  •


Podrobnosti o produktu





Popis produktu:

E3C252D4U



  1. Micro-ATX (9.6" x 9.6")
  2. Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
  3. 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
  4. 1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
  5. Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
  6. 6 SATA 6Gb/s
  7. 2 RJ45 (1GbE) by Intel® i210
  8. VGA, HDMI
  9. Remote Management (IPMI)



Specifications



 Physical Status
Form Factor Micro-ATX
Dimensions 9.6'' x 9.6'' (244 mm x244 mm)
 Processor System
CPU Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
Socket Single Socket H5 (LGA1200)
Chipset Intel® C252
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type Supports DDR4 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM ECC/non-ECC UDIMM: up to 32GB
DIMM Frequency ECC/non-ECC UDIMM: max. 3200*MHz
*Up to DDR4 2666MHz when installing 10th Gen Intel® Pentium® Series Processors
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe4.0* x16 [CPU]
*When installing 10th Gen Intel® Pentium® Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function
PCIe x 4 SLOT4: PCIe4.0* x4 [CPU]
PCIe x 1 SLOT7: PCIe3.0 x1 [PCH]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key* (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor [PCH]
*SATA0 will be disabled when M2_1 populated with SATA device
 SATA/SAS Storage
PCH Built-in Storage Intel® C252 (6 SATA 6Gb/s; RAID 0/1/5/10):
5 SATA 7-pin, 1 SATA DOM or 1 M.2
 Ethernet
Additional GbE Controller Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
 Graphics
Controller ASPEED AST2500
VRAM DDR4 256MB
 Rear I/O
UID Button/LED 1 button w/ LED
VGA Port 1 DB15
Serial Port 1 DB9
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE)
Dedicate LAN 1 dedicated IPMI LAN port
HDMI 1 HDMI
 Internal Connector/Headers
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Video output 1
Speaker Header 1
Buzzer 1
Fan Header 7 (4-pin)
Thermal Sensor Header 1
TPM Header https://www.asrockrack.com/general/productdetail.asp?Model=E3C252D4U#Specifications











Parametry





Základní parametry
Určení:  Servery
Formát základní desky:  ATX
Herní:  NE

Socket
Socket:  AM4 socket
Výrobce čipsetu:  AMD
Čipset:  AMD X570 Chipset
Počet CPU socketů:  Single socket

Paměť
Typ paměti:  DDR4
Počet paměťových slotů:  4
Maximální frekvence paměti [MHz]:  2933
Podpora ECC:  ANO
