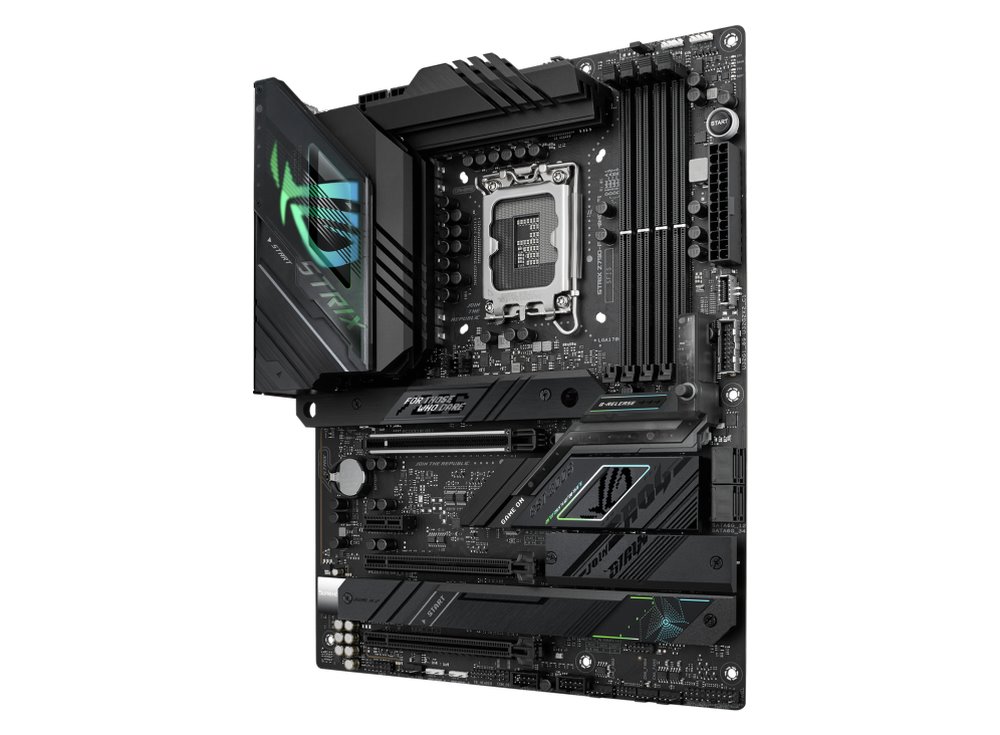

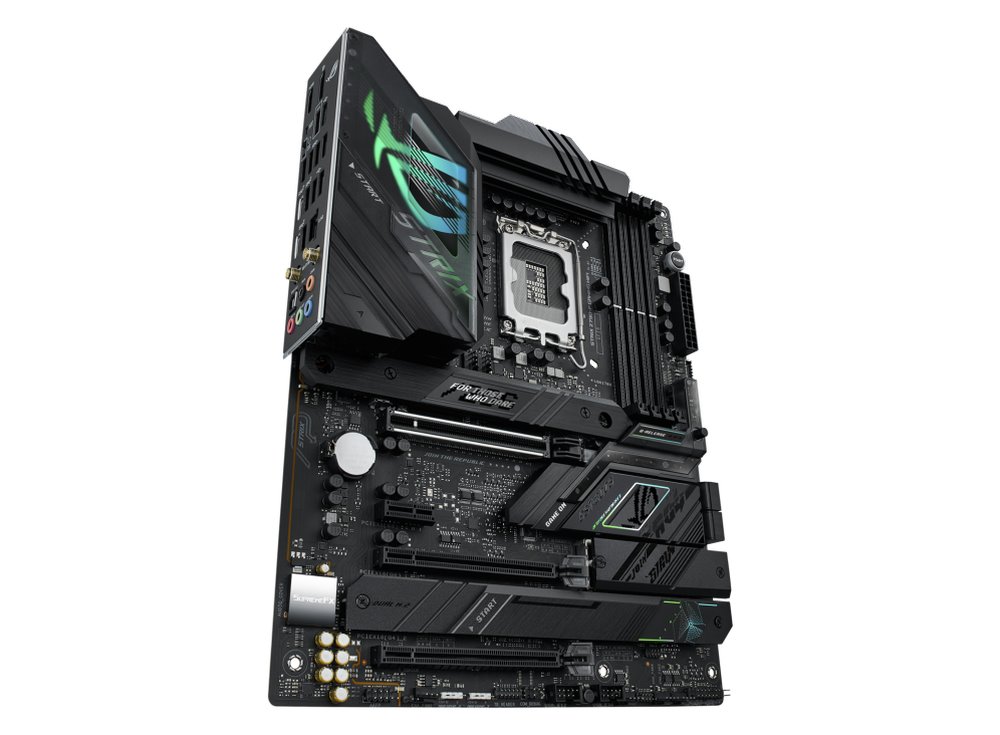

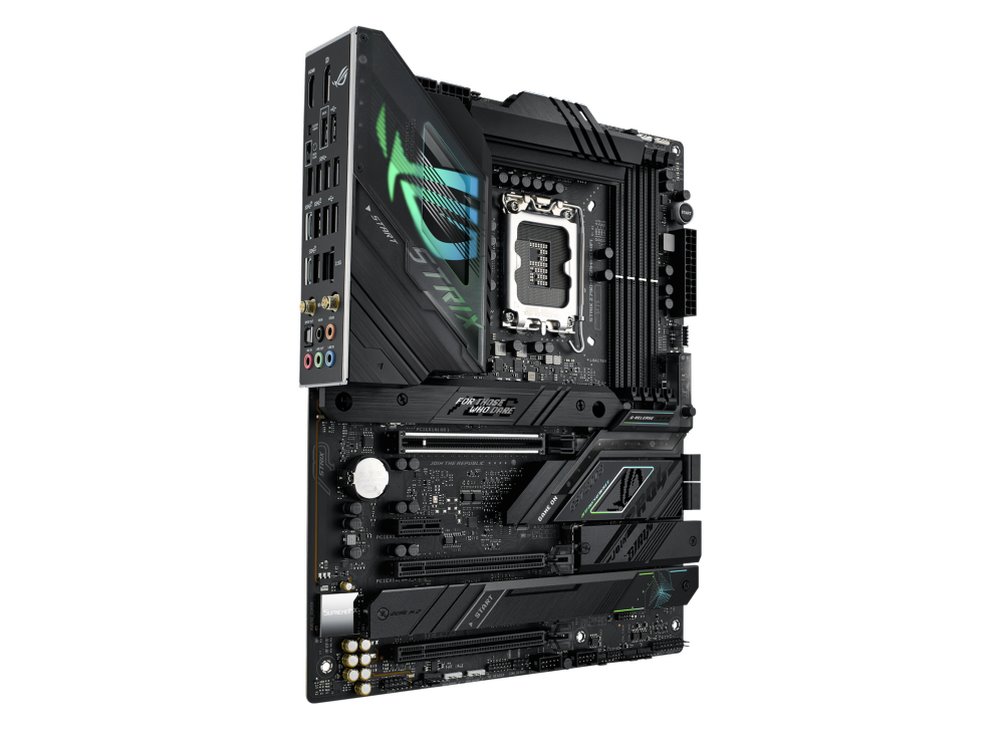

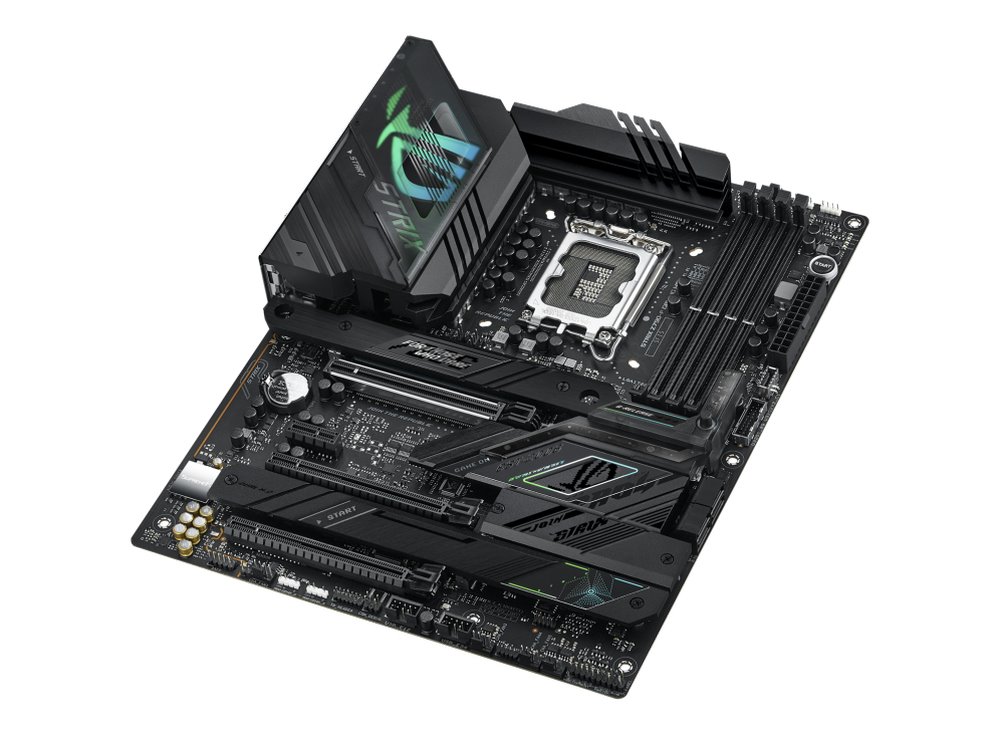

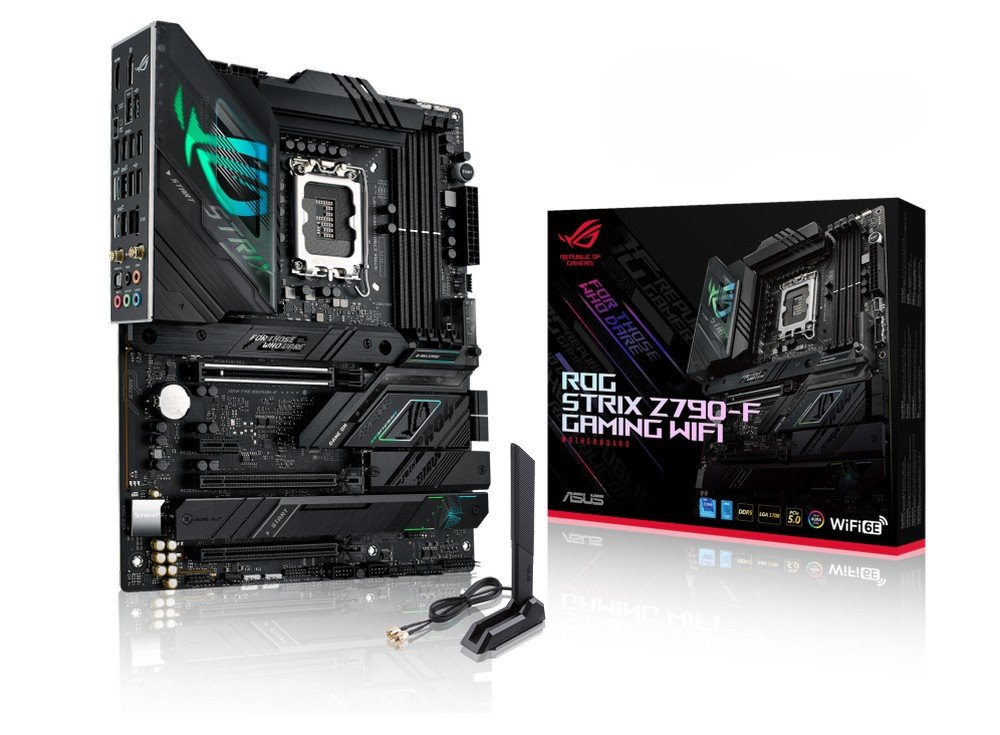

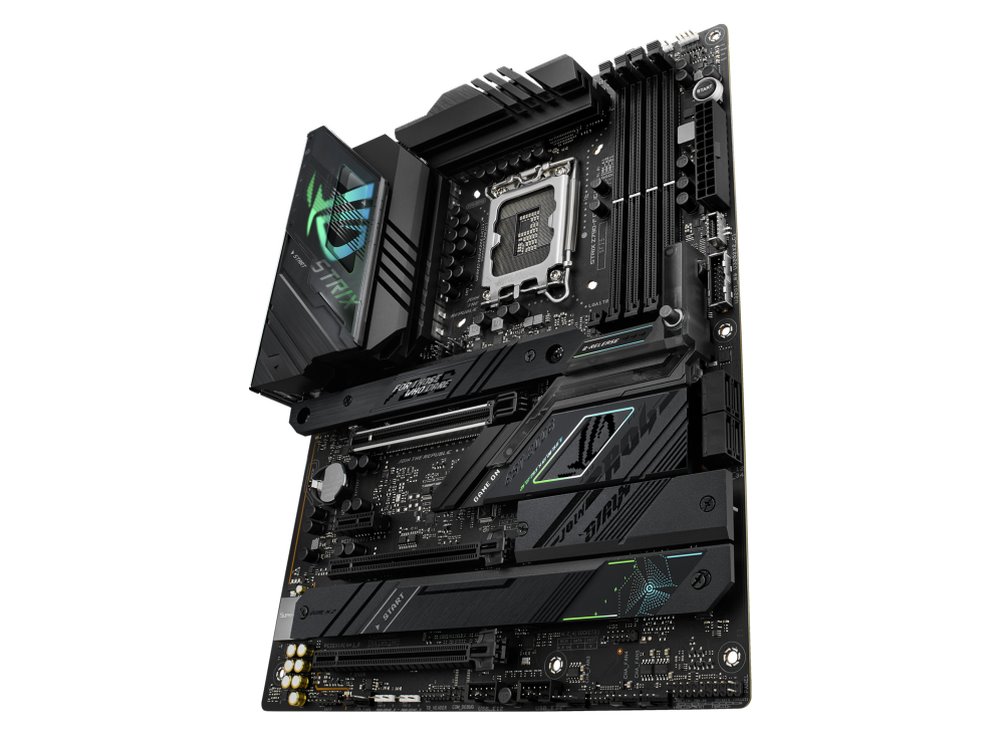

ASUS ROG STRIX Z790-F GAMING WIFI socket LGA1700 DDR5 Z790 ATX HDMI DP

Popis produktu:

AKCE !

Cyklodres zdarma při koupi této desky

(Prosíme uveďte preferovanou velikost dresu, a pánský/dámský druh, do poznámky nebo svému obchodníkovi. Velikosti jsou limitovány aktuálními počty)

============================================================================================

Parametry:

CPU

Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^® Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI^® port***
* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel^® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel^® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel^® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel^® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth^® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C^®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^® with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C^®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^® with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features

Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
- Output: 5/9V max. 3A, 12V max. 2.5A
- Compatible with PD3.0

Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS^® Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

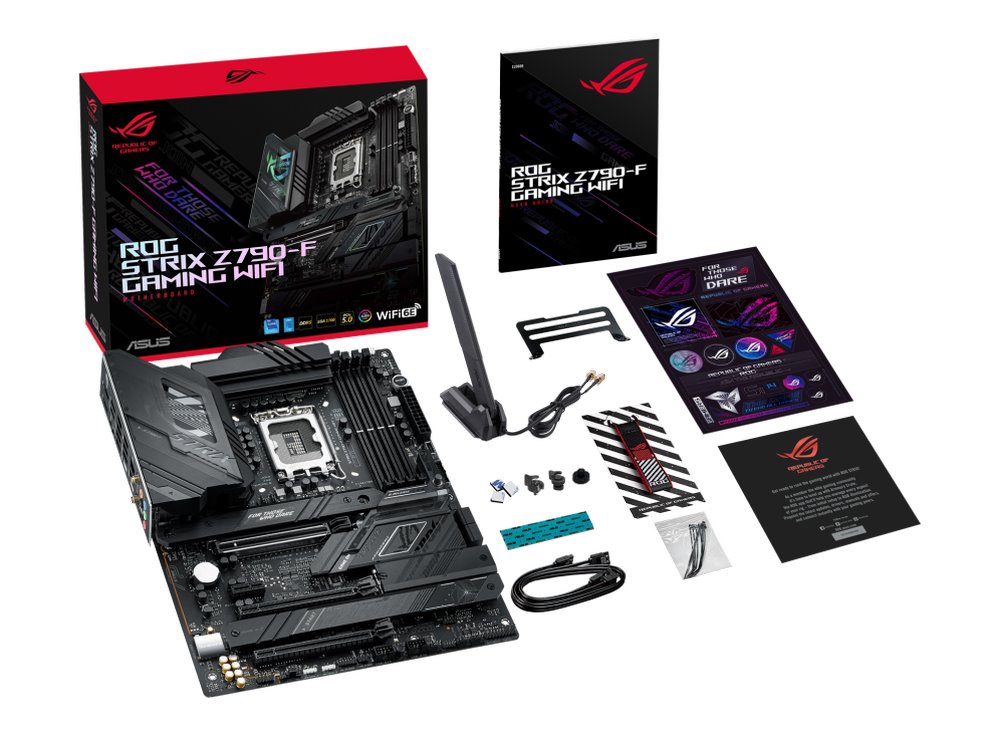

Accessories

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2
1 x DDR5 fan holder

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber

PackageDocumentation
1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
