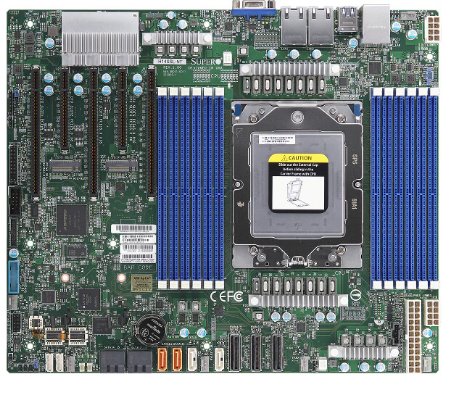

SUPERMICRO MB 1xSP5 (Epyc 9005/4), 12x DDR5, 8x SATA+6x NVMe/16xSATA+4xNVMe, 2x M.2, PCIe 5.0 (3 x16, 2 x8), 2x10Gb,IPMI








  • SUPERMICRO MB 1xSP5 (Epyc 9005/4), 12x DDR5, 8x SATA+6x NVMe/16xSATA+4xNVMe, 2x M.2, PCIe 5.0 (3 x16, 2 x8), 2x10Gb,IPMI










Kód:
SRMBDH14SSLNTB
P/N:
MBD-H14SSL-NT-B
Výrobce:

Supermicro





ks.

 Koupit


PRA - Sklad Praha,
BRA - Sklad HL Bratislava,
EXT - Externí sklad: Pro termín dodání kontaktujte svého obchodníka














  •
  •


Podrobnosti o produktu





Popis produktu:

Product SKUs
MBD-H14SSL-NT
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs
System Memory
Memory
  • Slot Count: 12 DIMM Slots
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes
  • RDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controller
  • Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3 port(s) (Header)
  • 4 USB 3 port(s)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (header)
TPM
  • 1 TPM header
Others
  • 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s)
  • 2 MCIO (PCIe 5.0 x8/SATA3) port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  •
  • 3 PCIe 5.0 x16 (in x16) slots
  • 2 PCIe 5.0 x8 slots
M2
  • 2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • UEFI 2.8
  • ACPI 6.5
  • SMBIOS 3.7 or later
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,VBAT
LED
  • BMC/IPMI Heartbeat LED
  • UID/remote UID LED
Temperature
  • CPU temperature
  • CPU thermal trip support
  • Memory temperature
  • VRM temperature
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Other Features
  • RoT


Stránky o produktu:

https://www.supermicro.com/en/products/motherboard/h14ssl-nt
