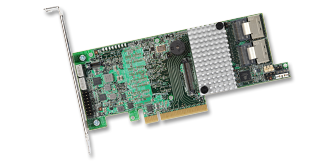

LSI MegaRAID SAS 9266-8i, 2nd Generation 6Gb/s, SAS/SATA 8-port, 1GB, RAID 0/1/5/6/10/50/60, PCI-E 2.0 x8, SGL

Popis produktu:

MegaRAID SAS 9266-8i
Eight-port 6Gb/s PCI Express 2.0 SATA+SAS RAID controller
Second-generation 6Gb/s SATA+SAS controller, built on the LSISAS2208 dual-core ROC
Better controller cache protection with eco-friendly, low-maintenance MegaRAID® CacheVault™ technology



MegaRAID SAS 9266-8i


Solution Provided Eight-port internal SATA+SAS solution for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduced maintenance costs and total cost of ownership with supported CacheVault technology.
Physical Dimensions MD2 Low profile (2.536”x6.60”)
Internal Connectors Two Mini-SAS SFF8087 internal connectors (side mount)
Device Support Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type x8 lane PCI Express 2.0 compliant
Data Transfer Rates Up to 6Gb/s per port
I/O Processor/SAS Controller LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory 1 GB 1333MHz DDRIII SDRAM
Cache Protection MegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297)
MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Key RAID Data Protection Features RAID levels 0, 1, 5 and 6
RAID spans 10, 50 and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during arrays
array rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SSD Support with SSD Guard™
Patrol read for media scanning and repairing
64 logical drive support
Up to 64TB LUN support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible
Hot Spare support
– Automatic rebuild
– Enclosure affinity
– Emergency SATA hot spare for SAS arrays
Enclosure management
– SES (inband)
– SGPIO (sideband)

Operating Temperature Maximum ambient: Controller Card: 60°C, with optional CVM01: 55°C, with optional LSIiBBU09: 45°C
Operating Voltage +3.3V, +12V
MTBF (Calculated)  1,031,514hours
Hardware Warranty 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management MegaRAID Management Suite™
MegaRAID Storage Manager™
MegaCLI (command-line interface)
WebBIOS

Optional SSD Optimization  MegaRAID CacheCade Software uses SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools
MegaRAID Fast Path Software designed to provide high-performance I/O acceleration for SSD arrays connected to 6Gb/s
MegaRAID SATA+SAS controllers
OS Support Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
* Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support
?Ordering Information ?MegaRAID SAS 9266-8i

Single Pack: LSI00295
Kit: LSI00296 LSICVM01
Kit: LSI00297 LSIiBBU09
Kit: LSI00279

Stránky o produktu:

http://www.lsi.com/products/storagecomponents/Pages/MegaRAIDSAS9266-8i.aspx
