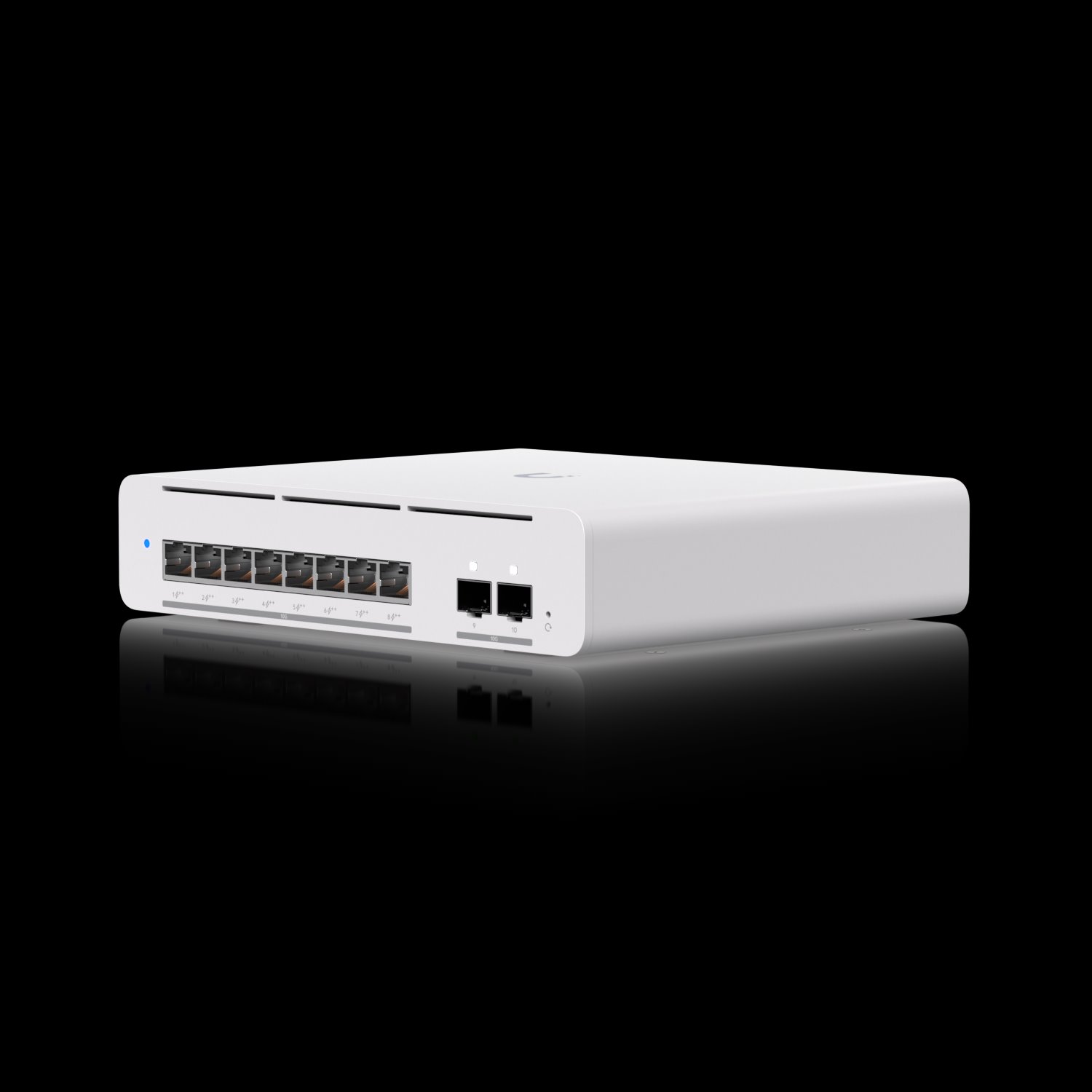

Ubiquiti Switch L3 UniFi USW-Pro-XG-8-PoE

Popis produktu:

Overview
Dimensions
210.4 x 173.8 x 43.7 mm
(8.28 x 6.84 x 1.7")
Port Layout
10 GbE RJ45
8 (All PoE++)
(10G/5G/2.5G/1G/100M)
10G SFP+
2
(10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
155W
Layer 3
?
Form Factor
Compact desktop, wall
Etherlighting™
?

Performance
Switching Capacity
200 Gbps
Total Non-Blocking Throughput
100 Gbps
Forwarding Rate
149 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB

Layer 3 Features
DHCP Server (Local Networks)
?
DHCP Relay
?
Inter-VLAN Routing (Local Networks)
?
Static Routing (Local Networks)
?

Layer 2 Features
LACP Port Aggregation
?
STP & RSTP
?
QoS (DSCP)
?
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
?
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
?
IGMP Snooping
?
802.1X Control
?
MAC-Based ACLs & Device Isolation
?
DHCP Snooping & Guarding
?
Egress Rate Limit
?
Flow Control
?
Storm Control
?
Multicast & Broadcast Rate Limiting
?
MAC Address Blocking
?
IP-Based ACLs & Network Isolation
?
MAC-Based Port Restriction
?
Port Isolation
?
Port Mirroring
?
Jumbo Frames
?
LLDP-MED
?
Voice VLAN
?
Loop Protection
?

Hardware
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
Max. Power Consumption
61W (Excluding PoE output)
220W (Including PoE output)
Power Method
AC/DC Adapter (included)
Power Input Method
DC input
Power Supply
AC/DC, external, 210W
Supported Voltage Range
50—57V DC
Management
Ethernet
AR
Weight
1.6 kg (3.5 lb)
Enclosure Material
SGCC steel
Mount Material
Polycarbonate
ESD/EMP Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
?
SFP+
?
LEDs
System
?
NDAA Compliant
?
Certifications
CE, FCC, IC

Software
Application Requirements
UniFi Network
Version 9.0.114 and later
